TIMKEN -Torrington HJ-8010432 Needle Roller bearing,Cylindrical Roller Radial Bearings-HJ Series 127,000 X 165,100 X 50,80 (mm)

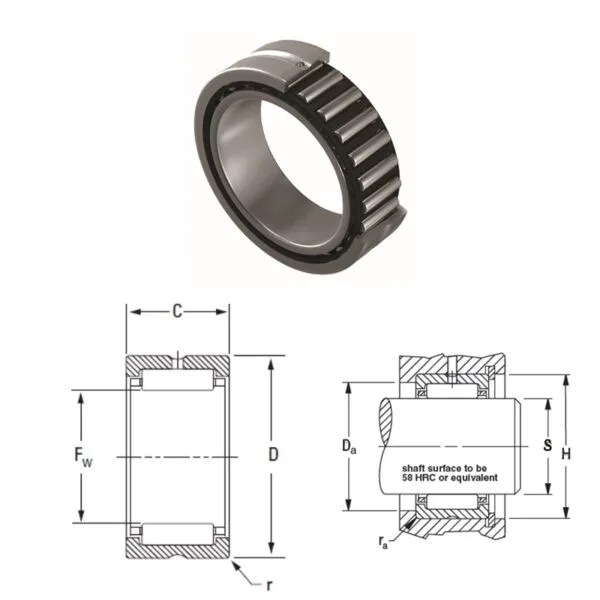

Description
Fw Bore (nom.) inch | 5.0000 |
Fw Bore (nom.) mm | 127,000 |
D Outside Diameter (nom.) inch | 6.5000 |
D Outside Diameter (nom.) mm | 165,100 |
C/B Width (nom.) inch | 2.000 |
C/B Width (nom.) mm | 50,80 |
Limiting Speed rpm | 3 430 |
ra* Housing Fillet (max.) inch | 0.10 |
ra* Housing Fillet (max.) mm | 2,5 |
Used with Inner Ring Designation † | — |
Weight | 2.66kg |
DIMENSIONS AND LOAD RATINGS |
|||||||||||||||
Fw
Bore |
D
Outside Diameter |
C/B
Width |
Bearing Designation | Load Ratings | Limiting Speed | ra*
Housing Fillet |
Used with Inner Ring Designation
† |
F
Housing Shoulder Diameter |
|||||||
Basic Dynamic
Cr
|
Basic Static
CO
|
||||||||||||||
ISO | ISO | ||||||||||||||
(nom.) | (nom.) | (nom.) | T | 281 | 76 | (max.) | ±1⁄64 | ±0.4 | |||||||
inch | mm | inch | mm | inch | mm | lbf | lbf | lbf | rpm | inch | mm | inch | mm | ||
3.7500
|
95,250
|
4.7500
|
120,650
|
2.000
|
50,80
|
HJ-607632
|
32 900
|
44 200
|
91 000
|
4 540
|
0.10
|
2,5
|
IR-506032 IR-526032 | 4 3⁄8
|
111,1
|
4.0000
|
101,600
|
5.0000
|
127,000
|
2.000
|
50,80
|
HJ-648032
|
34 300
|
46 000
|
98 000
|
4 230
|
0.10
|
2,5
|
IR-526432
IR-546432 IR-566432 |
4 5⁄8
|
117,5
|
4.2500
|
107,950
|
5.2500
|
133,350
|
2.000
|
50,80
|
HJ-688432
|
34 700
|
46 500
|
102 000
|
3 970
|
0.10
|
2,5
|
IR-566832
IR-606832 |
4 7⁄8
|
123,8
|
4.5000
4.5000 |
114,300
114,300 |
6.0000
6.0000 |
152,400
152,400 |
2.250
2.500 |
57,15
63,50 |
HJ-729636
HJ-729640 |
48 000
53 400 |
64 400
71 700 |
116 000
134 000 |
3 850
3 850 |
0.10
0.10 |
2,5
2,5 |
IR-607236
IR-607240 |
5 7⁄16
5 7⁄16 |
138,1
138,1 |
5.0000
5.0000
5.0000 |
127,000
127,000
127,000 |
6.5000
6.5000
6.5000 |
165,100
165,100
165,100 |
2.000
2.250
2.500 |
50,80
57,15
63,50 |
HJ-8010432
HJ-8010436
HJ-8010440 |
46 100
52 000
57 800 |
61 200
69 400
77 300 |
113 000
133 000
152 000 |
3 430
3 430
3 430 |
0.10
0.10
0.10 |
2,5
2,5
2,5 |
—
IR-648036 IR-688036 IR-648040 |
5 15⁄16
5 15⁄16
5 15⁄16 |
150,8
150,8
150,8 |
5.5000
5.5000 |
139,700
139,700 |
7.0000
7.0000 |
177,800
177,800 |
2.500
3.000 |
63,50
76,20 |
HJ-8811240
HJ-8811248 |
58 600
69 500 |
78 600
93 300 |
160 000
199 000 |
3 120
3 120 |
0.10
0.10 |
2,5
2,5 |
IR-728840
IR-728848 |
6 7⁄16
6 7⁄16 |
163,5
163,5 |
5.7500 | 146,050 | 7.2500 | 184,150 | 3.000 | 76,20 | HJ-9211648 | 70 600 | 94 800 | 207 000 | 2 960 | 0.12 | 3,0 | IR-769248 | 6 11⁄16 | 169,9 |
6.0000
6.0000 |
152,400
152,400 |
7.5000
7.5000 |
190,500
190,500 |
2.500
3.000 |
63,50
76,20 |
HJ-9612040
HJ-9612048 |
61 900
74 000 |
83 000
99 300 |
178 000
224 000 |
2 830
2 830 |
0.12
0.12 |
3,0
3,0 |
IR-809640
IR-809648 |
6 15⁄16
6 15⁄16 |
176,2
176,2 |
6.5000
6.5000 |
165,100
165,100 |
8.0000
8.0000 |
203,200
203,200 |
2.500
3.000 |
63,50
76,20 |
HJ-10412840
HJ-10412848 |
64 100
76 300 |
86 000
102 000 |
191 000
237 000 |
2 600
2 600 |
0.12
0.12 |
3,0
3,0 |
IR-8810440
IR-8810448 |
7 7⁄16
7 7⁄16 |
188,9
188,9 |
7.2500 | 184,150 | 9.1250 | 231,775 | 3.000 | 76,20 | HJ-11614648 | 88 600 | 118 300 | 253 000 | 2 340 | 0.12 | 3,0 | IR-9611648 | 8 1⁄2 | 215,9 |
7.7500 | 196,850 | 9.6250 | 244,475 | 3.000 | 76,20 | HJ-12415448 | 92 000 | 123 000 | 271 000 | 2 180 | 0.12 | 3,0 | IR-10412448 | 9 | 228,6 |
8.2500 | 209,550 | 10.1250 | 257,175 | 3.000 | 76,20 | HJ-13216248 | 95 400 | 127 000 | 290 000 | 2 040 | 0.12 | 3,0 | IR-11213248 | 9 1⁄2 | 241,3 |
8.7500 | 222,250 | 10.6250 | 269,875 | 3.000 | 76,20 | HJ-14017048 | 98 600 | 130 000 | 308 000 | 1 920 | 0.16 | 4,0 | IR-12014048 | 10 | 254,0 |
9.2500 | 234,950 | 11.1250 | 282,575 | 3.000 | 76,20 | HJ-14817848 | 101 000 | 136 000 | 326 000 | 1 810 | 0.16 | 4,0 | IR-12814848 | 10 1⁄2 | 266,7 |
BEARING MOUNTING DIMENSIONS |
||||||||||||||||
Mounting Dimensions, Clearance Fit | Bearing Designation | Mounting Dimensions, Tight Transition Fit | ||||||||||||||
Inch Mounting | Metric Mounting(mm) | Inch Mounting | Metric Mounting(mm) | |||||||||||||
S
Shaft Raceway Diameter |
H
Housing Bore Diameter |
S
Shaft Raceway Diameter |
H
Housing Bore Diameter |
S
Shaft Raceway Diameter |
H
Housing Bore Diameter |
S
Shaft Raceway Diameter |
H
Housing Bore Diameter |
|||||||||
max. | min. | min. | max. | max. | min. | min. | max. | max. | min. | min. | max. | max. | min. | min. | max. | |
3.7500 | 3.7491 | 4.7500 | 4.7516 | 95,250 | 95,227 | 120,650 | 120,691 | HJ-607632 | 3.7487 | 3.7477 | 4.7478 | 4.7494 | 95,214 | 95,191 | 120,594 | 120,635 |
4.0000 | 3.9991 | 5.0000 | 5.0016 | 101,600 | 101,577 | 127,000 | 127,041 | HJ-648032 | 3.9986 | 3.9977 | 4.9978 | 4.9994 | 101,564 | 101,541 | 126,944 | 126,985 |
4.2500 | 4.2491 | 5.2500 | 5.2516 | 107,950 | 107,927 | 133,350 | 133,391 | HJ-688432 | 4.2486 | 4.2477 | 5.2478 | 5.2494 | 107,914 | 107,891 | 133,294 | 133,335 |
4.5000
4.5000 |
4.4991
4.4991 |
6.0000
6.0000 |
6.0016
6.0016 |
114,300
114,300 |
114,277
114,277 |
152,400
152,400 |
152,441
52,441 |
HJ-729636
HJ-729640 |
4.4986
4.4986 |
4.4977
4.4977 |
5.9978
5.9978 |
5.9994
5.9994 |
114,264
114,264 |
114,241
114,241 |
152,344
152,344 |
152,385
152,385 |
5.0000
5.0000 5.0000 |
4.9990
4.9990 4.9990 |
6.5000
6.5000 6.5000 |
6.5016
6.5016 6.5016 |
127,000
127,000 127,000 |
126,975
126,975 126,975 |
165,100
165,100 165,100 |
165,141
165,141 165,141 |
HJ-8010432
HJ-8010436 HJ-8010440 |
4.9984
4.9984 4.9984 |
4.9974
4.9974 4.9974 |
6.4978
6.4978 6.4978 |
6.4994
6.4994 6.4994 |
126,959
126,959 126,959 |
126,934
126,934 126,934 |
165,044
165,044 165,044 |
165,085
165,085 165,085 |
5.5000
5.5000 |
5.4990
5.4990 |
7.0000
7.0000 |
7.0016
7.0016 |
139,700
139,700 |
139,675
139,675 |
177,800
177,800 |
177,841
77,841 |
HJ-8811240
HJ-8811248 |
5.4984
5.4984 |
5.4974
5.4974 |
6.9978
6.9978 |
6.9994
6.9994 |
139,659
139,659 |
139,634
139,634 |
177,744
177,744 |
177,785
177,785 |
5.7500 | 5.7490 | 7.2500 | 7.2518 | 146,050 | 146,025 | 184,150 | 184,196 | HJ-9211648 | 5.7484 | 5.7474 | 7.2476 | 7.2494 | 146,009 | 145,984 | 184,089 | 184,135 |
6.0000
6.0000 |
5.9990
5.9990 |
7.5000
7.5000 |
7.5018
7.5018 |
152,400
152,400 |
152,375
152,375 |
190,500
190,500 |
190,546
190,546 |
HJ-9612040
HJ-9612048 |
5.9984
5.9984 |
5.9974
5.9974 |
7.4976
7.4976 |
7.4994
7.4994 |
152,359
152,359 |
152,334
152,334 |
190,439
190,439 |
190,485
190,485 |
6.5000
6.5000 |
6.4990
6.4990 |
8.0000
8.0000 |
8.0018
8.0018 |
165,100
165,100 |
165,075
165,075 |
203,200
203,200 |
203,246
203,246 |
HJ-10412840
HJ-10412848 |
6.4984
6.4984 |
6.4974
6.4974 |
7.9976
7.9976 |
7.9994
7.9994 |
165,059
165,059 |
165,034
165,034 |
203,139
203,139 |
203,185
203,185 |
7.2500 | 7.2488 | 9.1250 | 9.1268 | 184,150 | 184,120 | 231,775 | 231,821 | HJ-11614648 | 7.2480 | 7.2468 | 9.1226 | 9.1244 | 184,099 | 184,069 | 231,714 | 231,760 |
7.7500 | 7.7488 | 9.6250 | 9.6268 | 196,850 | 196,820 | 244,475 | 244,521 | HJ-12415448 | 7.7480 | 7.7468 | 9.6226 | 9.6244 | 196,799 | 196,769 | 244,414 | 244,460 |
8.2500 | 8.2488 | 10.1250 | 10.1270 | 209,550 | 209,520 | 257,175 | 257,226 | HJ-13216248 | 8.2480 | 8.2468 | 10.1224 | 10.1244 | 209,499 | 209,469 | 257,109 | 257,160 |
8.7500 | 8.7488 | 10.6250 | 10.6270 | 222,250 | 222,220 | 269,875 | 269,926 | HJ-14017048 | 8.7480 | 8.7468 | 10.6224 | 10.6244 | 222,199 | 222,169 | 269,809 | 269,860 |
9.2500 | 9.2488 | 11.1250 | 11.1270 | 234,950 | 234,920 | 282,575 | 282,626 | HJ-14817848 | 9.2480 | 9.2468 | 11.1224 | 11.1244 | 234,899 | 234,869 | 282,509 | 282,560 |
TIMKEN-Torrington HJ-8010432 Needle Roller Bearing
The TIMKEN-Torrington HJ-8010432 is a robust needle roller bearing designed for high load capacity in compact spaces, making it ideal for applications requiring durable performance under heavy radial loads. As part of TIMKEN’s respected range of needle roller bearings, the HJ-8010432 combines advanced engineering with superior materials, ensuring reliability and efficiency in demanding industrial and automotive applications.。
Design and Construction
The HJ-8010432 is a full complement needle roller bearing, meaning it lacks a cage and is filled with the maximum number of needle rollers. This design maximizes the bearing’s load capacity, allowing it to support heavier radial loads compared to bearings with cages. The bearing measures approximately 5 inches (127 mm) in outer diameter, 6.5 inches (165.1 mm) in length, and 2.25 inches (57.15 mm) in wall thickness. These dimensions make it a compact yet powerful solution for applications where space is limited but high load handling is essential.
Constructed from high-quality, case-hardened steel, the bearing’s outer ring provides excellent wear resistance and durability under high stress and heavy load conditions. The precisely aligned needle rollers distribute the load evenly across the bearing, reducing stress concentrations and minimizing friction. This leads to smoother operation, reduced heat generation, and a longer service life, even in challenging operating environments.
Performance Features
The HJ-8010432 excels in high-load, low-speed applications where radial load capacity is crucial. The full complement of needle rollers ensures a large contact surface area, which enhances stability and load distribution. The absence of an inner ring allows the bearing to be mounted directly on the shaft, which saves space and simplifies assembly, making it particularly useful in tight installation spaces.
Applications
This bearing is commonly utilized in various heavy-duty applications, including automotive transmissions, gearboxes, industrial machinery, and construction equipment. It is particularly suited for scenarios that involve continuous or shock loading, such as in heavy-duty pumps, conveyors, and other machinery that must perform reliably under heavy stress and variable conditions.
Conclusion
The TIMKEN-Torrington HJ-8010432 needle roller bearing is a reliable, high-capacity solution designed for applications requiring exceptional load support in constrained spaces. Its full complement design and durable construction provide superior performance, making it a preferred choice in industrial and automotive environments where robust and compact bearing solutions are needed. This bearing exemplifies TIMKEN’s commitment to delivering high-quality, innovative products tailored to meet the rigorous demands of modern machinery.
