MCGILL PCFE-3 BEARINGS , TRAKROL® Bearings PCF SERIES

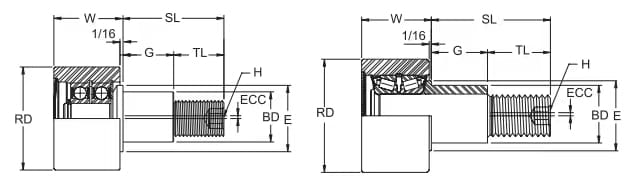

BRG. NO.	ROLLER DIA.(RD)	WIDTH (W)	MIN. THREAD LENGTH(TL)	FINE THREADS	STUD LENGTH(SL)	ECCENTRIC DIA. (BD) +.001 -.001	ECCENTRIC LENGTH (G) +.000 -.010	ECCENTRIC (ECC)	HEX SOCKET(H)	SHOULDER DIAMETER(E)	RADIAL BASIC DYNAMIC RATING (LBS)	DYNAMIC THRUST LOAD RATING (LBS)	MAX. STATIC CAPACITY(LBS)
PCFE-1 1/2	1.500	1 3/16	.770	5/8-18	1 1/2	0.875	.730	.030	1/4	1 1/8	2520	1320	1370
PCFE-1 3/4	1.750	1 3/16	.895	3/4-16	1 3/4	1.000	.855	.030	1/4	1 1/4	2520	1320	1370
PCFE-2	2.000	1 11/16	1.020	7/8-14	2	1.187	.980	.030	3/8	1 1/2	3490	1830	2000
PCFE-2 1/4	2.250	1 11/16	1.020	7/8-14	2	1.187	.980	.030	3/8	1 1/2	3490	1830	2000
PCFE-2 1/2	2.500	1 11/16	1.145	1-14	2 1/4	1.375	1.105	.030	7/16	1 11/16	5120	2680	3120
PCFE-2 3/4	2.750	1 11/16	1.145	1-14	2 1/4	1.375	1.105	.030	7/16	1 11/16	5120	2680	3120
PCFE-3	3.000	2	1.270	1 1/4-12	2 1/2	1.750	1.230	.060	7/16	2 5/16	14300	5790	16000
PCFE-3 1/4	3.250	2	1.270	1 1/4-12	2 1/2	1.750	1.230	.060	7/16	2 5/16	14300	5790	16000
PCFE-3 1/2	3.500	2	1.395	1 1/4-12	2 3/4	1.812	1.355	.060	7/16	2 5/16	14300	5790	16000
PCFE-4	4.000	2	1.395	1 1/4-12	2 3/4	1.812	1.355	.060	7/16	2 5/16	14300	5790	16000

BRG. NO.	PCFE-3
ROLLER DIA. (RD)	3.000
WIDTH (W)	2
MIN. THREAD LENGTH (TL)	1.270
FINE THREADS	1 1/4-12
STUD LENGTH (SL)	2 1/2
ECCENTRIC DIA. (BD) +.001 -.001	1.750
ECCENTRIC LENGTH (G) +.000 -.010	1.230
ECCENTRIC (ECC)	.060
HEX SOCKET (H)	7/16
SHOULDER DIAMETER (E)	2 5/16
RADIAL BASIC DYNAMIC RATING (LBS)	14300
DYNAMIC THRUST LOAD RATING (LBS)	5790
MAX. STATIC CAPACITY (LBS)	16000
