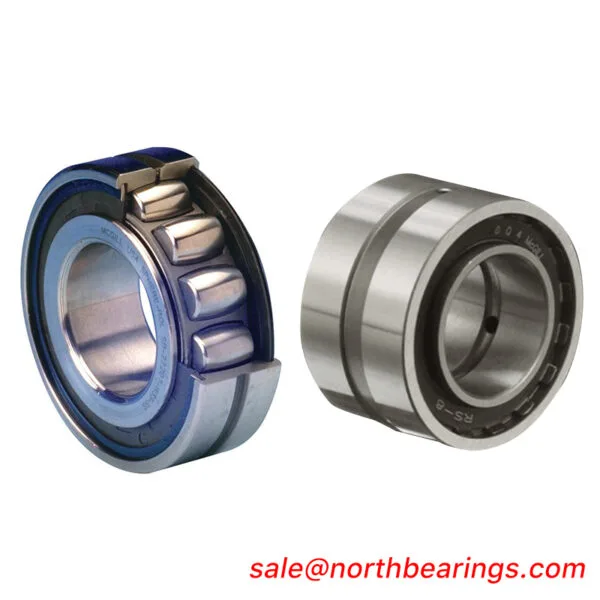

MCGILL B-22320 SPHERE-ROL BEARINGS SB 22300 SERIES
MCGILL B-22320 Description
| Â Â McGILL BEARING NUMBER | Â BORE A | Â OUTSIDE DIAMETER B | Â WIDTH C | Â Â r (1) | SHOULDER DIMENSIONS | Â H (2) | Â J MIN. | Â LIM. * SPEED (3) RPM | Â ABMA BASIC DYNAMIC RATING POUNDS | Â Â ADAPTER NUMBER (4) | ADAPTER DIMENSIONS | Â (5) BRG. WT. LBS. | ||||||||||
| D | E | SHAFT DIAM. | B 1 | S | D 1 | |||||||||||||||||
| MM | INCH | TOL. +.0000 | MM | INCH | TOL. +.0000 | MM | INCH +.0000 | TOL. +.0000 | INCH | INCH | INCH | INCH | d | INCH | INCH | INCH | ||||||
| SB-22308 | 40 | 1.5748 | Â -.0005 | 90 | 3.5433 | Â Â -.0006 | 33 | 1.2992 | Â -.0050 | .059 | 1 15/16 | 3 1/8 | 7/32 | 3/32 | 5250 | 25600 | – | – | – | – | – | 2.3 |
| SB-22309 | 45 | 1.7717 | 100 | 3.9370 | 36 | 1.4173 | .059 | 2 1/8 | 3 1/2 | 1/4 | 3/32 | 4650 | 30100 | SNW 109 | 1 7/16 | 2 9/64 | 1/2 | 2 17/32 | 3.1 | |||
| SB-22310 | 50 | 1.9685 | 110 | 4.3307 | 40 | 1.5748 | .079 | 2 3/8 | 3 7/8 | 1/4 | 3/32 | 4200 | 37400 | SNW 110 | 1 11/16 | 2 25/64 | 9/16 | 2 11/16 | 4.1 | |||
| SB-22311 | 55 | 2.1654 | Â Â Â Â -.0006 | 120 | 4.7244 | 43 | 1.6929 | Â Â Â Â -.0060 | .079 | 2 9/16 | 4 1/4 | 21/64 | 1/8 | 3800 | 41300 | SNW 111 | 1 15/16 | 2 33/64 | 9/16 | 2 31/32 | 5.3 | |
| SB-22312 | 60 | 2.3622 | 130 | 5.1181 | Â -.0008 | 46 | 1.8110 | .079 | 2 13/16 | 4 9/16 | 21/64 | 1/8 | 3500 | 54700 | – | – | – | – | – | 6.6 | ||
| SB-22313 | 65 | 2.5591 | 140 | 5.5118 | 48 | 1.8898 | .079 | 3 | 4 15/16 | 21/64 | 1/8 | 3250 | 59700 | SNW 113 | 2 3/16 | 2 49/64 | 5/8 | 3 3/8 | 7.8 | |||
| SB-22314 | 70 | 2.7559 | 150 | 5.9055 | 51 | 2.0079 | .079 | 3 1/4 | 5 3/8 | 21/64 | 1/8 | 3000 | 68400 | – | – | – | – | – | 9.5 | |||
| SB-22315 | 75 | 2.9528 | 160 | 6.2992 | Â -.0010 | 55 | 2.1654 | .079 | 3 7/16 | 5 3/8 | 21/64 | 1/8 | 2800 | 74800 | SNW 115 | 2 7/16 | 3 5/64 | 43/64 | 3 7/8 | 11.9 | ||
| SB-22316 | 80 | 3.1496 | 170 | 6.6929 | 58 | 2.2835 | .079 | 3 5/8 | 6 1/16 | 21/64 | 1/8 | 2650 | 77500 | SNW 116 | 2 11/16 | 3 13/64 | 43/64 | 4 5/32 | 13.9 | |||
| SB-22317 | 85 | 3.3465 | Â Â -.0008 | 180 | 7.0866 | 60 | 2.3622 | Â Â -.0080 | .098 | 3 7/8 | 6 7/16 | 21/64 | 1/8 | 2500 | 95100 | SNW 117 | 2 15/16 | 3 5/16 | 45/64 | 4 13/32 | 16.2 | |
| SB-22318 | 90 | 3.5433 | 190 | 7.4803 | Â -.0012 | 64 | 2.5197 | .098 | 4 1/8 | 6 3/4 | 7/16 | 1/8 | 2350 | 98400 | SNW 118 | 3 3/16 | 3 35/64 | 25/32 | 4 21/32 | 19.2 | ||
| SB-22319 | 95 | 3.7402 | 200 | 7.8740 | 67 | 2.6378 | .098 | 4 3/8 | 7 1/16 | 7/16 | 5/32 | 2200 | 109400 | – | – | – | – | – | 22.7 | |||
| SB-22320 | 100 | 3.9370 | 215 | 8.4646 | 73 | 2.8740 | .098 | 4 5/8 | 7 11/16 | 7/16 | 3/16 | 2050 | 128800 | SNW 120 | 3 7/16 | 3 31/32 | 27/32 | 5 3/16 | 28.4 | |||
MCGILL B-22320 Nots
1. r = maximum fillet radius for shaft and housing.
2. All sizes supplied with outer ring relubrication feature (-W33) unless otherwise specified. Consult McGill Customer Service for availability of non-W33.
3. Refers to oil lubrication and moderate load. For grease lubrication, use 1/2 of value shown.
4. Complete adapter number indicates adapter sleeve, locknut and lock washer (Example â?Adapter Number SNW 109 indicates sleeve S-109, locknut N-09 and lock washer W-09.)
5. Does not include adapter assembly.
6. Add suffix “K” to indicate tapered bore bearing.
7. Add suffix “-W22” for selected O.D.
8. Add suffix “S” to bearing number for single seal and “SS” for double seals. For tapered bore bearings using single seal, add suffix “S” to indicate seal on small bore side and “SL” to indicate
seal on large bore side. For high temp. seals, use “TS”, “TSS” OR “TSL”, and high temp. grease.
9. For LAMBDA® seals, add suffix “YS” to bearing number for single seal and “YSS” for double seals. For tapered bore bearings, single LAMBDA® sealed, add suffix “YS” to indicate seal
on small bore side and “YSL” to indicate seal on large bore side.
10. For expansion-type bearing, add suffix “E” to catalog number immediately after diametral clearance specifications.
