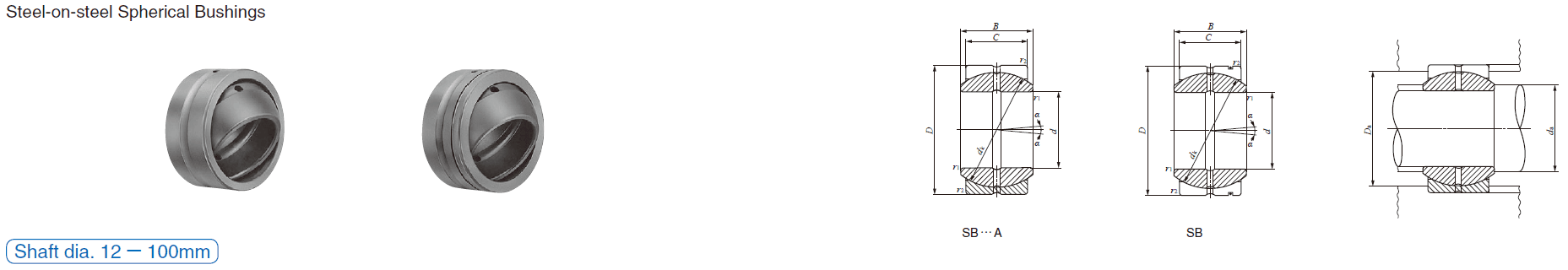

IKO SB 110A,SB 11017093 SPHERICAL BUSHINGS
IKO SB 110A,SB 11017093 Description
|
Shaft dia.
mm |
Identification number | Mass (Ref.)
kg |
Boundary dimensions mm | Permissible tilting angle degree
α |
||||||
| d | D | B | C | dk | r (1)
s min |
|||||
| 110 | SB 110A | SB 11017093 | 8.55 | 110 | 170 | 93 | 80 | 160 | 1 | 5 |
| 115 | SB 115A | SB 11518098 | 10.3 | 115 | 180 | 98 | 85 | 165 | 1 | 5 |
| 120 | SB 120A | SB 120190105 | 12.4 | 120 | 190 | 105 | 90 | 175 | 1 | 5 |
| 130 | SB 130A | SB 130200110 | 13.8 | 130 | 200 | 110 | 95 | 185 | 1 | 5 |
| 150 | SB 150A | SB 150220120 | 17.0 | 150 | 220 | 120 | 105 | 205 | 1 | 5 |
| Mounting dimensions mm | Dynamic load capacity
Cd N |
Static load capacity
Cs N |
|||
| da | Da | ||||
| Min. | Max.(2) | Max. | Min. | ||
| 115.5 | 130 | 164.5 | 149 | 1 260 000 | 7 530 000 |
| 120.5 | 132.5 | 174.5 | 152 | 1 380 000 | 8 250 000 |
| 125.5 | 140 | 184.5 | 162 | 1 540 000 | 9 270 000 |
| 135.5 | 148.5 | 194.5 | 171 | 1 720 000 | 10 300 000 |
| 155.5 | 166 | 214.5 | 189 | 2 110 000 | 12 700 000 |
IKO SB 110A,SB 11017093 Nots
Notes(1) Minimum allowable value of chamfer dimensions r1 and r2
(2) When Spherical Bushings are used with full tilting angle, the shaft shoulder dimesion must be less than the maximum value of da.
Remarks1. The inner ring and the outer ring have an oil groove and two oil holes, respectively.
2. No grease is prepacked. Perform proper lubrication.
