IKO RNAF 102012,RNAF 122212 NEEDLE ROLLER BEARINGS WITH SEPARABLE CAGE

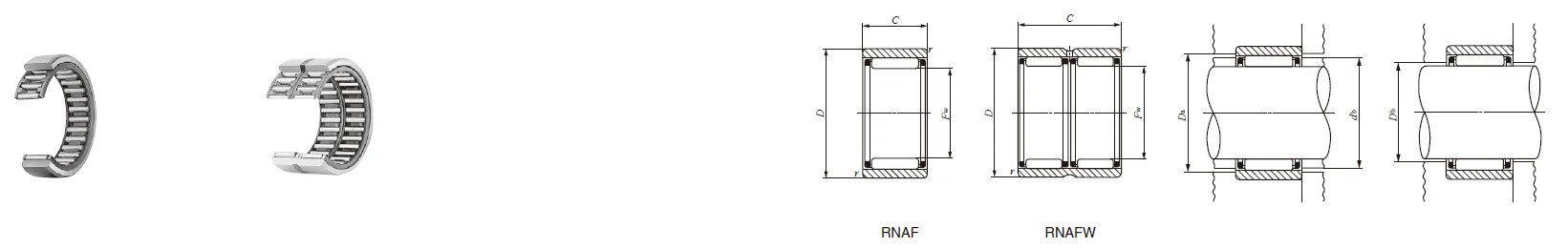

IKO RNAF 102012,RNAF 122212 Description
| Shaft dia.
mm |
Identification number | Mass (Ref.)
g | Boundary dimensions mm | Standard mounting dimensions mm | Basic dynamic load rating C N | Basic static load rating C0 N | |||||
| Fw | D | C | (1) rs min | db | Da Max. | Db | |||||
| 5 | RNAF 5108N | 2.8 | 5 | 10 | 8 | 0.2 | 6.7 | 8.4 | 5.4 | 2 420 | 1 950 |
| 6 | RNAF 6138N | 5.5 | 6 | 13 | 8 | 0.3 | 8.4 | 11 | 6.4 | 2 700 | 2 320 |
| 7 | RNAF 7148N | 6.1 | 7 | 14 | 8 | 0.3 | 9.4 | 12 | 7.4 | 2 960 | 2 690 |
| 8 | RNAF 81510 RNAFW 81620 | 8.2 20.5 | 8 8 | 15 16 | 10 20 | 0.3 0.3 | 10.4 10.8 | 13 14 | 8.4 8.4 | 3 630 6 220 | 3 600 7 200 |
| 10 | RNAF 101710 RNAF 102012 | 9.6 18.7 | 10 10 | 17 20 | 10 12 | 0.3 0.3 | 12.4 13.5 | 15 18 | 10.4 10.4 | 4 160 5 940 | 4 550 6 000 |
| 12 | RNAF 122212 | 19.5 | 12 | 22 | 12 | 0.3 | 15.5 | 20 | 12.4 | 9 030 | 8 460 |
| 14 | RNAF 142213 RNAFW 142220 RNAF 142612 | 18.7 28.5 29 | 14 14 14 | 22 22 26 | 13 20 12 | 0.3 0.3 0.3 | 17.6 17.6 19.4 | 20 20 24 | 14.6 14.6 14.6 | 7 860 10 800 9 790 | 9 410 14 200 9 680 |
| 15 | RNAF 152313 RNAFW 152320 | 19.7 30.5 | 15 15 | 23 23 | 13 20 | 0.3 0.3 | 18.6 18.6 | 21 21 | 15.6 15.6 | 8 250 11 400 | 10 200 15 400 |
| 16 | RNAF 162413 RNAFW 162420 RNAF 162812 | 21 32 31.5 | 16 16 16 | 24 24 28 | 13 20 12 | 0.3 0.3 0.3 | 19.6 19.6 21.4 | 22 22 26 | 16.6 16.6 16.6 | 8 620 11 900 10 500 | 11 000 16 700 10 900 |
| 17 | RNAF 172513 RNAFW 172520 | 22 33.5 | 17 17 | 25 25 | 13 20 | 0.3 0.3 | 20.6 20.6 | 23 23 | 17.6 17.6 | 8 980 12 400 | 11 800 17 900 |
| 18 | RNAF 182613 RNAFW 182620 RNAF 183012 RNAFW 183024 | 23 35 34.5 69.5 | 18 18 18 18 | 26 26 30 30 | 13 20 12 24 | 0.3 0.3 0.3 0.3 | 21.6 21.6 23.4 23.4 | 24 24 28 28 | 18.6 18.6 18.6 18.6 | 9 330 12 900 11 800 20 200 | 12 700 19 100 13 100 26 200 |
| RNAF | RNAFW | |
| Allowable rotational | ||
| min-1 | ||
| 85 000 | ||
| 75 000 | ||
| 65 000 | ||
| 60 000 | ||
| 60 000 | ||
| 50 000 | ||
| 50 000 | ||
| 40 000 | ||
| 35 000 | ||
| 35 000 | ||
| 35 000 | ||
| 35 000 | ||
| 35 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 | ||
| 30 000 |
IKO RNAF 102012,RNAF 122212 Nots
Notes(1) Minimum allowable value of chamfer dimension r
(2) Allowable rotational speed applies to oil lubrication. For grease lubrication, a maximum of 50% of this value is allowable.
Remarks1. The character “N” at the end of the identification number indicates that a synthetic resin cage is incorporated.
2. RNAF has no oil hole. RNAFW is provided with an oil groove and an oil hole on the outer ring.
3. No grease is prepacked. Perform proper lubrication.
