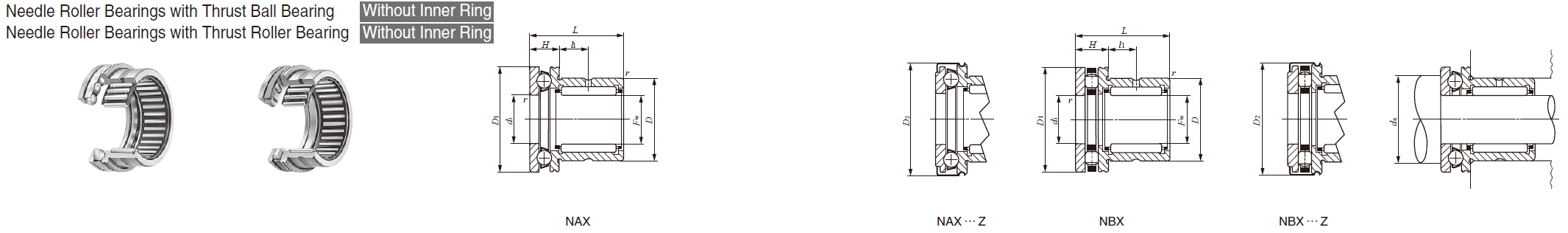

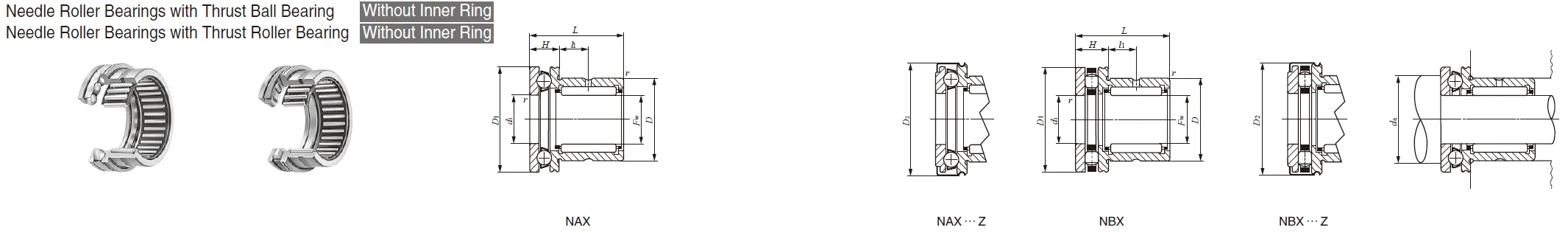

IKO NAX 1223,NAX 1223Z THRUST BEARINGS
IKO NAX 1223,NAX 1223Z Description
Shaft dia.
mm |
Identification number | |||||||
Mass
(Ref.) g |
With dust cover | Mass
(Ref.) g |
Mass
(Ref.) g |
With dust cover | Mass
(Ref.) g |
|||
10 | NAX 1023 | 38.5 | NAX 1023Z | 40 | ─ | ─ | ─ | ─ |
12 | NAX 1223 | 43.5 | NAX 1223Z | 45.5 | ─ | ─ | ─ | ─ |
15 | NAX 1523
─ |
47.5
─ |
NAX 1523Z
─ |
48.5
─ |
─
NBX 1523 |
─
54 |
─
NBX 1523Z |
─
55 |
17 | NAX 1725
─ |
54
─ |
NAX 1725Z
─ |
56
─ |
─
NBX 1725 |
─
61 |
─
NBX 1725Z |
─
63 |
20 | NAX 2030
─ |
85.5
─ |
NAX 2030Z
─ |
89
─ |
─
NBX 2030 |
─
94 |
─
NBX 2030Z |
─
97.5 |
25 | NAX 2530
─ |
131
─ |
NAX 2530Z
─ |
135
─ |
─
NBX 2530 |
─
143 |
─
NBX 2530Z |
─
147 |
30 | NAX 3030
─ |
145
─ |
NAX 3030Z
─ |
151
─ |
─
NBX 3030 |
─
160 |
─
NBX 3030Z |
─
166 |
35 | NAX 3530
─ |
169
─ |
NAX 3530Z
─ |
176
─ |
─
NBX 3530 |
─
186 |
─
NBX 3530Z |
─
193 |
40 | NAX 4032
─ |
219
─ |
NAX 4032Z
─ |
227
─ |
─
NBX 4032 |
─
240 |
─
NBX 4032Z |
─
248 |
45 | NAX 4532
─ |
264
─ |
NAX 4532Z
─ |
273
─ |
─
NBX 4532 |
─
293 |
─
NBX 4532Z |
─
302 |
50 | NAX 5035
─ |
287
─ |
NAX 5035Z
─ |
297
─ |
─
NBX 5035 |
─
315 |
─
NBX 5035Z |
─
325 |
60 | NAX 6040
─ |
417
─ |
NAX 6040Z
─ |
454
─ |
─
NBX 6040 |
─
501 |
─
NBX 6040Z |
─
538 |
70 | NAX 7040 | 555 | NAX 7040Z | 606 | ─ | ─ | ─ |
Boundary dimensions mm | Standard mounting dimension
da Min. mm |
Basic dynamic load rating
C |
Basic static load rating
C0 |
Allowable
rotational speed(2)
min-1 |
||||||||||
Fw | D | D1 | D2 | L | H | l1 | (1)
rs min |
d i | Radial
N |
Axial
N |
Radial
N |
Axial
N |
||
10 | 19 | 24 | 25 | 23 | 9 | 6.5 | 0.3 | 10 | 18 | 8 230 | 10 000 | 9 190 | 11 100 | 9 500 |
12 | 21 | 26 | 27 | 23 | 9 | 6.5 | 0.3 | 12 | 20 | 9 250 | 9 670 | 11 200 | 11 100 | 9 000 |
15 | 24 | 28 | 29 | 23 | 9 | 6.5 | 0.3 | 15 | 23 | 12 300 | 9 930 | 14 900 | 12 200 | 8 500 |
15 | 24 | 28 | 29 | 23 | 9 | 6.5 | 0.3 | 15 | 26 | 12 300 | 10 200 | 14 900 | 23 900 | 14 000 |
17 | 26 | 30 | 31 | 25 | 9 | 8 | 0.3 | 17 | 25 | 12 900 | 10 800 | 16 300 | 14 500 | 8 500 |
17 | 26 | 30 | 31 | 25 | 9 | 8 | 0.3 | 17 | 28 | 12 900 | 11 400 | 16 300 | 28 600 | 13 000 |
20 | 30 | 35 | 36 | 30 | 10 | 10.5 | 0.3 | 20 | 29 | 17 600 | 14 200 | 25 400 | 19 700 | 7 500 |
20 | 30 | 35 | 36 | 30 | 10 | 10.5 | 0.3 | 20 | 33 | 17 600 | 19 000 | 25 400 | 48 700 | 11 000 |
25 | 37 | 42 | 43 | 30 | 11 | 9.5 | 0.6 | 25 | 35 | 20 000 | 19 600 | 32 100 | 29 700 | 7 000 |
25 | 37 | 42 | 43 | 30 | 11 | 9.5 | 0.6 | 25 | 40 | 20 000 | 22 700 | 32 100 | 60 700 | 9 000 |
30 | 42 | 47 | 48 | 30 | 11 | 9.5 | 0.6 | 30 | 40 | 25 100 | 20 400 | 40 100 | 33 600 | 6 500 |
30 | 42 | 47 | 48 | 30 | 11 | 9.5 | 0.6 | 30 | 45 | 25 100 | 27 400 | 40 100 | 81 000 | 8 000 |
35 | 47 | 52 | 53 | 30 | 12 | 9 | 0.6 | 35 | 45 | 26 900 | 21 200 | 46 200 | 37 600 | 6 000 |
35 | 47 | 52 | 53 | 30 | 12 | 9 | 0.6 | 35 | 50 | 26 900 | 29 100 | 46 200 | 91 100 | 7 000 |
40 | 52 | 60 | 61 | 32 | 13 | 10 | 0.6 | 40 | 52 | 29 400 | 26 900 | 54 100 | 50 000 | 5 500 |
40 | 52 | 60 | 61 | 32 | 13 | 10 | 0.6 | 40 | 57 | 29 400 | 41 700 | 54 100 | 133 000 | 6 000 |
45 | 58 | 65 | 66.5 | 32 | 14 | 9 | 0.6 | 45 | 57 | 31 000 | 27 900 | 60 200 | 55 100 | 5 000 |
45 | 58 | 65 | 66.5 | 32 | 14 | 9 | 0.6 | 45 | 62 | 31 000 | 40 800 | 60 200 | 133 000 | 5 500 |
50 | 62 | 70 | 71.5 | 35 | 14 | 10 | 0.6 | 50 | 62 | 42 200 | 28 800 | 83 400 | 60 100 | 4 500 |
50 | 62 | 70 | 71.5 | 35 | 14 | 10 | 0.6 | 50 | 67 | 42 200 | 43 300 | 83 400 | 148 000 | 5 000 |
60 | 72 | 85 | 86.5 | 40 | 17 | 12 | 1 | 60 | 75 | 47 500 | 41 400 | 103 000 | 89 700 | 4 000 |
60 | 72 | 85 | 86.5 | 40 | 17 | 12 | 1 | 60 | 82 | 47 500 | 64 600 | 103 000 | 224 000 | 4 000 |
70 | 85 | 95 | 96.5 | 40 | 18 | 11 | 1 | 70 | 85 | 55 500 | 43 100 | 120 000 | 101 000 | 3 500 |
IKO NAX 1223,NAX 1223Z Nots
Notes(1) Minimum allowable value of chamfer dimension r
(2) Allowable rotational speed applies to oil lubrication. For grease lubrication, a maximum of 70% of this value is allowable in the
NAX series, and a maximum of 25% of this value is allowable in the NBX series.
Remarks1. The outer ring has an oil groove and an oil hole.
2. No grease is prepacked. Perform proper lubrication
