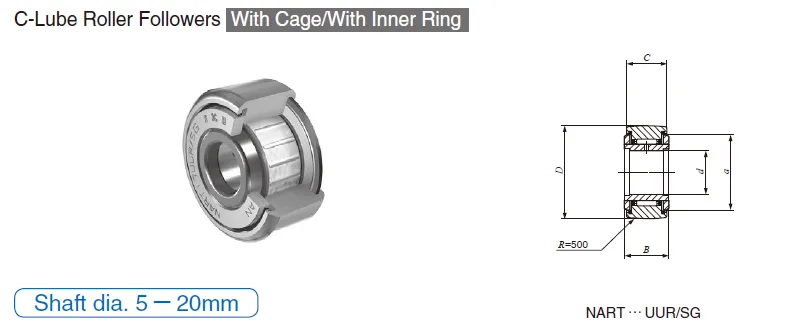

IKO NART 8 UUR / SG,NART 10 UUR / SG ROLLER FOLLOWERS
IKO NART 8 UUR / SG,NART 10 UUR / SG Description
|
Shaft dia. mm |
Identification number
Sealed type |
Mass (Ref.)
g |
Boundary dimensions mm | ||||
| d | D | B | C | a | |||
| 5 | NART 5 UUR / SG | 14.5 | 5 | 16 | 12 | 11 | 12 |
| 6 | NART 6 UUR / SG | 20.5 | 6 | 19 | 12 | 11 | 14 |
| 8 | NART 8 UUR / SG | 41.5 | 8 | 24 | 15 | 14 | 17.5 |
| 10 | NART 10 UUR / SG | 64.5 | 10 | 30 | 15 | 14 | 23.5 |
| 12 | NART 12 UUR / SG | 71 | 12 | 32 | 15 | 14 | 25.5 |
| 15 | NART 15 UUR / SG | 102 | 15 | 35 | 19 | 18 | 29 |
| 17 | NART 17 UUR / SG | 149 | 17 | 40 | 21 | 20 | 32.5 |
| 20 | NART 20 UUR / SG | 250 | 20 | 47 | 25 | 24 | 38 |
| Basic dynamic load rating
C
N |
Basic static load rating
C0 N |
Maximum allowable static load
N |
| 3 650 | 3 680 | 3 680 |
| 4 250 | 4 740 | 4 740 |
| 5 640 | 5 900 | 5 900 |
| 8 030 | 7 540 | 7 540 |
| 8 580 | 8 470 | 8 470 |
| 13 700 | 16 400 | 16 400 |
| 17 600 | 21 000 | 21 000 |
| 23 000 | 30 700 | 30 700 |
IKO NART 8 UUR / SG,NART 10 UUR / SG Nots
Remark This bearing cannot be re-lubricated as thermosetting solid-type lubricant C-Lube fills its inner space.
