IKO MV 25 C-Lube Linear Way MV

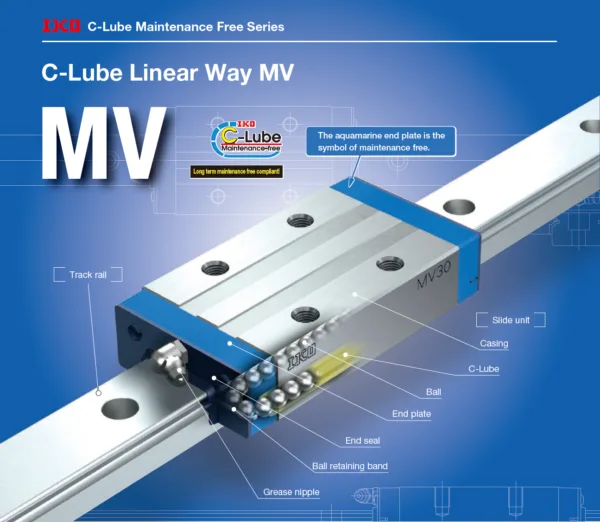

IKO MV 25 Description
|
Identification number |

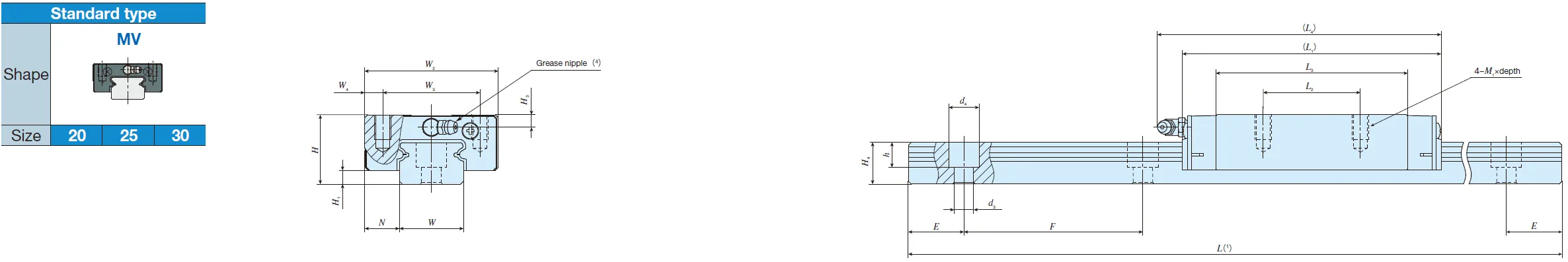

Mass (Ref.) | Dimensions of assembly
mm |
Dimensions of slide unit
mm |
Dimensions of track rail
mm |
Appended mounting bolt for track rail（2） mm
Bolt size×R |
Basic dynamic load rating（3）
C N |
Basic static load rating（3）
C0 N |
Static moment rating（3） | ||||||||||||||||||||
| Slide unit kg | Track rail kg/m |
H |
H1 |
N |
W2 |
W3 |
W4 |
L1 |
L2 |
L3 |
L4 |
M1×depth |
H3 |
W |
H4 |
d3 |
d4 |
h |
E |
F |
T0
N・m |
TX
N・m |
TY
N・m |
|||||
| MV 20 | 0.18 | 1.66 | 20 | 5 | 11 | 42 | 32 | 5 | 73 | 32 | 51.2 | 76 | M5×6 | 3.5 | 20 | 12 | 6 | 9.5 | 8.5 | 20 | 60 | M5×14 | 19 600 | 25 600 | 138 | 115
624 |
102
555 |
|
| MV 25 | 0.36 | 2.37 | 25 | 5 | 12.5 | 48 | 35 | 6.5 | 94 | 35 | 69.1 | 103 | M6×9 | 4.5 | 23 | 15 | 7 | 11 | 9 | 20 | 60 | M6×20 | 31 900 | 42 500 | 264 | 260
1 320 |
230
1 170 |
|
| MV 30 | 0.72 | 3.33 | 30 | 6 | 16 | 60 | 40 | 10 | 116 | 40 | 86.6 | 126 | M8×11 | 5 | 28 | 17 | 7 | 11 | 9 | 20 | 80 | M6×20 | 46 300 | 61 800 | 468 | 467
2 350 |
414
2 090 |
|
IKO MV 25 Nots
Notes （1） Track rail lengths L are shown in Table 1 on page Ⅱ－53.
（ 2） Track rail mounting bolts are not appended. Hexagon socket head bolts of JIS B 1176 with strength division 12.9 are recommended.

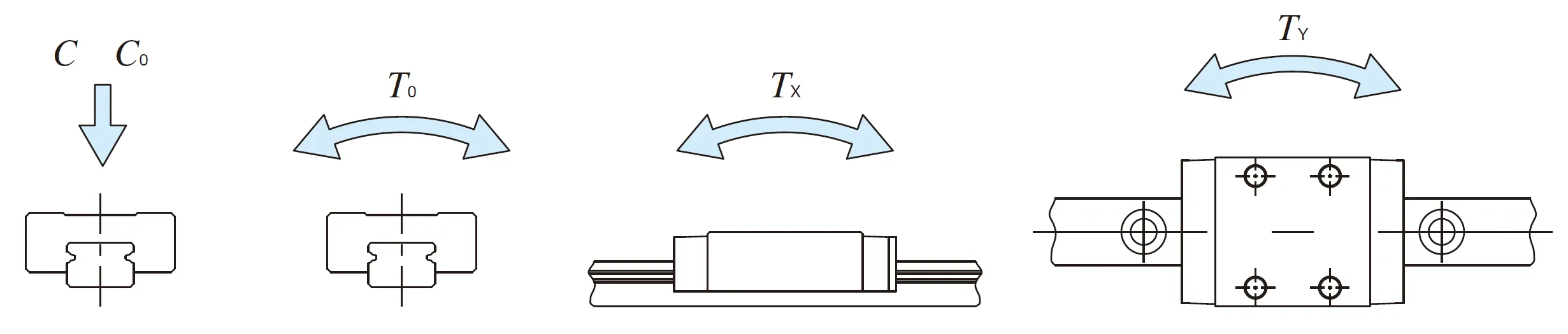

（ 3） T he direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below. The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
（ 4） For specifications of grease nipple, see Table 11 on page Ⅱ－57.

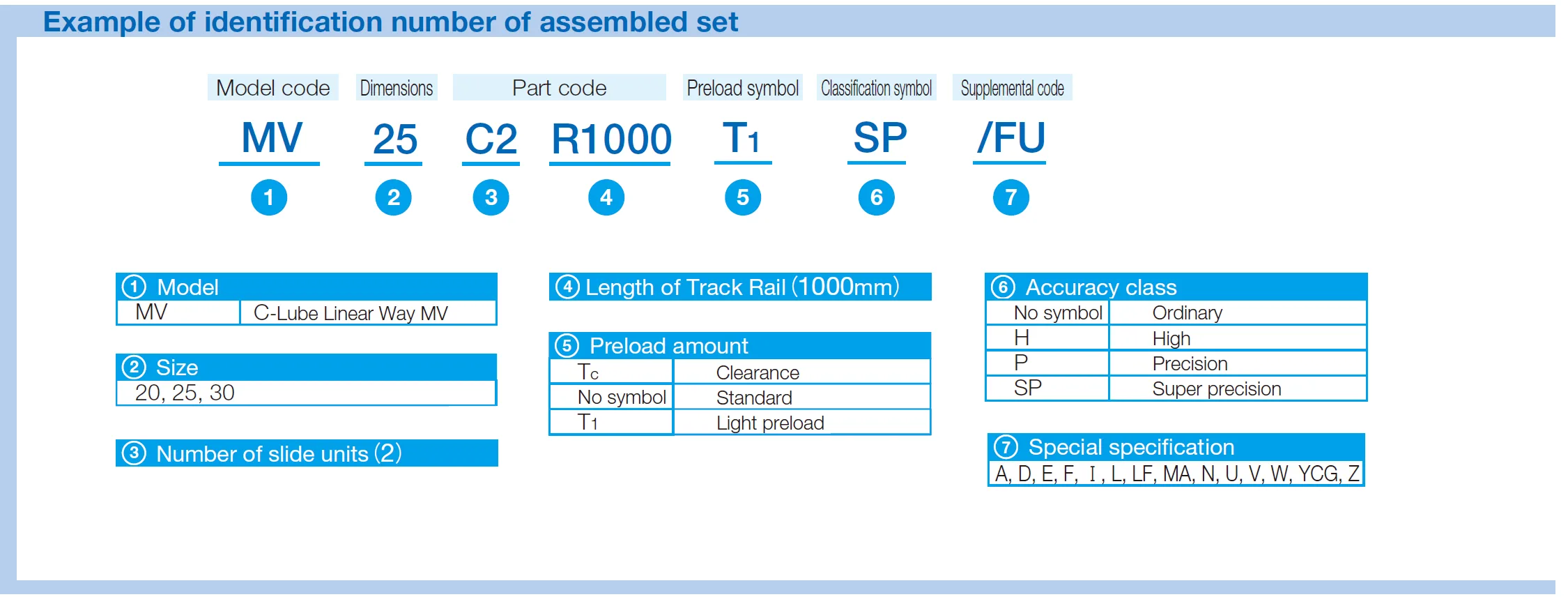

IKO MV 25 Example of identification number of assembled set
