IKO MLF 42 C-LUBE LINEAR WAY ML
IKO MLF 42 Description
Identification number | Interchangeable | Mass (Ref.) g | Dimensions of assembly mm | Dimensions of slide unit mm | Dimensions of track rail mm | Appended mounting bolt for track rail(2) mm
Bolt size×R | Basic dynamic load rating(3)
C N | Basic static load rating(3)
C0 N | Static moment rating(3) | |||||||||||||||||||||||
MLF series | LWLF series (No C-Lube) | Slide unit | Track rail (per 100 mm) | H | H1 | N | W2 | W3 | W4 | L1 | L2 | L3 | L4 | M1×depth | H3 | W | H4 | W5 | W6 | d3 | d4 | h | E | F | T0 N・m | TX N・m | TY N・m | |||||
MLFC 30 | LWLFC 30…B | ○ | 70 |
198 |
15 |
3 |
10 |
50 |
35 |
7.5 | 35.5 | - | 20.5 | 40 |
M4×4.5 |
3.1 |
30 |
9 |
- |
- |
4.5 |
8 |
4.5 |
20 |
40 |
M4×12 | 3 890 | 4 540 | 69.1 | 15.4 107 | 13.0 89.9 | |
MLF 30 | ○ | 111 | 49.5 | 18 | 34.8 | 54 | 5 970 | 8 440 | 128 | 48.7 256 | 40.8 215 | |||||||||||||||||||||
LWLF 30…B | ○ | 112 | ||||||||||||||||||||||||||||||
- | LWLF 30…BCS | ○ | ||||||||||||||||||||||||||||||
MLFG 30 | ○ | 167 | 68.5 | 35 | 53.8 | 73 | 7 810 | 12 300 | 187 | 100 508 | 84.3 426 | |||||||||||||||||||||
LWLFG 30…B | ○ | 170 | ||||||||||||||||||||||||||||||
MLFC 42 | ○
○ | 95 |
294 |
16 |
4 |
9 |
60 |
45 |
7.5 | 41.5 | - | 25.7 25.3 | 46 |
M4×4.5 |
3.2 |
42 |
10 |
23 |
9.5 |
4.5 |
8 |
4.5 |
20 |
40 |
M4×12 | 5 440 | 6 810
6 050 | 144
128 | 30.8 180 24.8 164 | 25.8 151 | ||
LWLFC 42…B | 5 030 | 20.8 137 | ||||||||||||||||||||||||||||||
MLF 42 | ○ | 138 | 55 | 20 | 39.4 | 60 | 7 050 | 9 840 | 209 | 61.3 333 | 51.4 280 | |||||||||||||||||||||
LWLF 42…B | ○ | 140 | 39 | |||||||||||||||||||||||||||||
- | LWLF 42…BCS | ○ | ||||||||||||||||||||||||||||||
MLFG 42 | ○ | 200 | 74.5 | 35 | 58.7 58.3 | 79 | 9 520 | 15 100 | 321 | 140 674 | 117 565 | |||||||||||||||||||||
LWLFG 42…B | ○ | 204 | 9 200 | 14 400 | 305 | 126 644 | 106 541 |
IKO MLF 42 Nots
Notes (1)Track rail lengths L are shown in Table 3.2 on page Ⅱ-11 and Table 3.3 on page Ⅱ-12.
(2) The appended track rail mounting bolts are hexagon socket head bolts equivalent to JIS B 1176. For stainless steel model, stainless
steel bolts are appended.

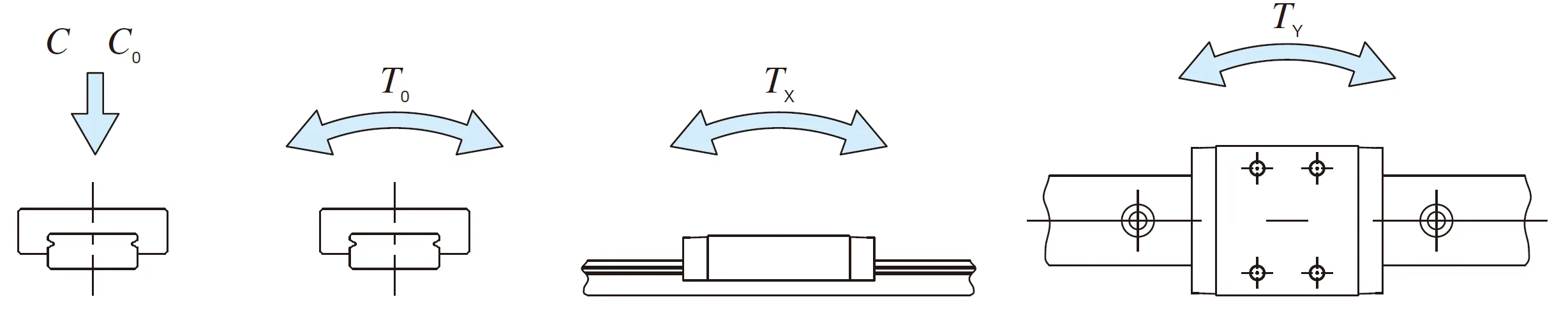

(3) The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below.
The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
Remark: The specifications of grease nipple are shown in Table 14 on page Ⅱ-18.
