IKO LWL 15-BCS C-LUBE LINEAR WAY ML
IKO LWL 15-BCS Description
| Identification number | Interchangeable | Mass (Ref.) g | Dimensions of assembly mm | Dimensions of slide unit mm | Dimensions of track rail mm | Appended mounting bolt for track rail（2） mm
Bolt size×R | Basic dynamic load ratin（g 3）
C N | Basic static load ratin（g 3）
C0 N | Static moment rating（3） | |||||||||||||||||||||
| ML series | LWL series （No C-Lube） | Slide unit | Track rail （per 100 mm） | H | H1 | N | W2 | W3 | W4 | L1 | L2 | L3 | L4 | M1×depth | H3 | W | H4 | d3 | d4 | h | E | F | T0 N・m | TX N・m | TY N・m | |||||
| MLC 15 | ○ | 43 |
107 |
16 |
4 |
8.5 |
32 |
25 |
3.5 | 32 | － | 17.8 | 37 |
M3×4 |
3.1 |
15 |
10 |
3.5 |
6.5 |
4.5 |
20 |
40 |
M3×10 | 3 490 | 3 890 | 30.0 | 11.7 84.5 | 9.8 70.9 | ||
| LWLC 15…B | ○ | 42 | 17.7 | |||||||||||||||||||||||||||
| ML 15 | ○ | 63 | 42 | 20 | 27.9 | 47 | 4 980 | 6 490 | 50.0 | 29.7 172 | 24.9 144 | |||||||||||||||||||
| LWL 15…B | ○ | 64 | 27.8 | |||||||||||||||||||||||||||
| － | LWL 15…BCS | ○ | ||||||||||||||||||||||||||||
| MLG 15 | ○ | 93 | 57 | 25 | 42.8 | 62 | 6 620 | 9 740 | 75.0 | 63.9 338 | 53.6 284 | |||||||||||||||||||
| LWLG 15…B | ○ | 95 | 42.7 | |||||||||||||||||||||||||||
| MLL 15 | － | ○ | 122 | 72 | 40 | 57.7 | 76 | 8 370 | 13 600 | 105 | 122 585 | 102 491 | ||||||||||||||||||
| MLC 20 | LWLC 20…B | ○ | 89 |
156 |
20 |
5 |
10 |
40 |
30 |
5 | 38 | － | 22.3 | 43 |
M4×6 |
4.2 |
20 |
11 |
6 |
9.5 |
5.5 |
30 |
60 |
M5×14 | 4 580 | 5 300 | 54.0 | 19.4 134 | 16.3 112 | |
| ML 20 | ○ | 130 | 50 | 25 | 34.6 | 55 | 6 650 | 9 080 | 92.6 | 52.7 280 | 44.2 235 | |||||||||||||||||||
| LWL 20…B | ○ | 133 | ||||||||||||||||||||||||||||
| － | LWL 20…BCS | ○ | ||||||||||||||||||||||||||||
| MLG 20 | ○ | 189 | 68 | 30 | 52.3 | 73 | 8 510 | 12 900 | 131 | 102 529 | 85.7 444 | |||||||||||||||||||
| LWLG 20…B | ○ | 196 | ||||||||||||||||||||||||||||
| MLC 25 | ○ | 189 |
243 |
25 |
5 |
12.5 |
48 |
35 |
6.5 | 54.5 | － | 31.9 | 64 |
M6×7 |
5 |
23 |
15 |
7 |
11.0 |
9.0 |
30 |
60 |
M6×16 | 9 120 | 10 600 | 128 | 57.4 376 | 48.1 316 | ||
| LWLC 25…B | ○ | 190 | ||||||||||||||||||||||||||||
| ML 25 | ○ | 305 | 78 | 35 | 55.7 | 88 | 13 500 | 18 500 | 223 | 163 887 | 137 744 | |||||||||||||||||||
| LWL 25…B | ○ | 310 | ||||||||||||||||||||||||||||
| MLG 25 | ○ | 405 | 98 | 40 | 75.5 | 108 | 16 700 | 25 200 | 303 | 293 1 480 | 246 1 240 | |||||||||||||||||||
| LWLG 25…B | ○ | 413 | ||||||||||||||||||||||||||||
IKO LWL 15-BCS Nots
Notes （1）Track rail lengths L are shown in Table 3.1 on page Ⅱ－10 and Table 3.3 on page Ⅱ－12.
（2） The appended track rail mounting bolts are hexagon socket head bolts equivalent to JIS B 1176. For stainless steel model, stainless
steel bolts are appended.

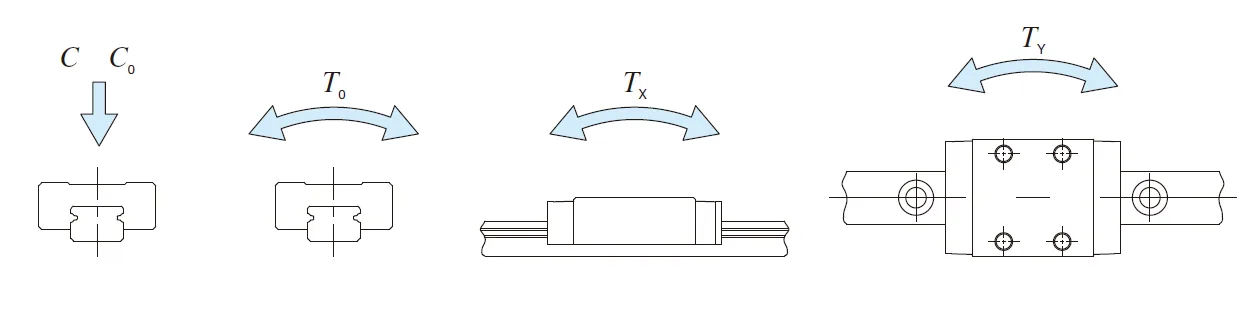

（3） The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below.
The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
If hybrid C-Lube Linear Way specification (supplemental code “/HB”) is selected in MLC15, ML15, MLG15, and MLL15, see Table
10 on page Ⅱ－17.
（4）The shapes of grease nipple vary by size. The specifications are shown in Table 14 on page Ⅱ̶18.

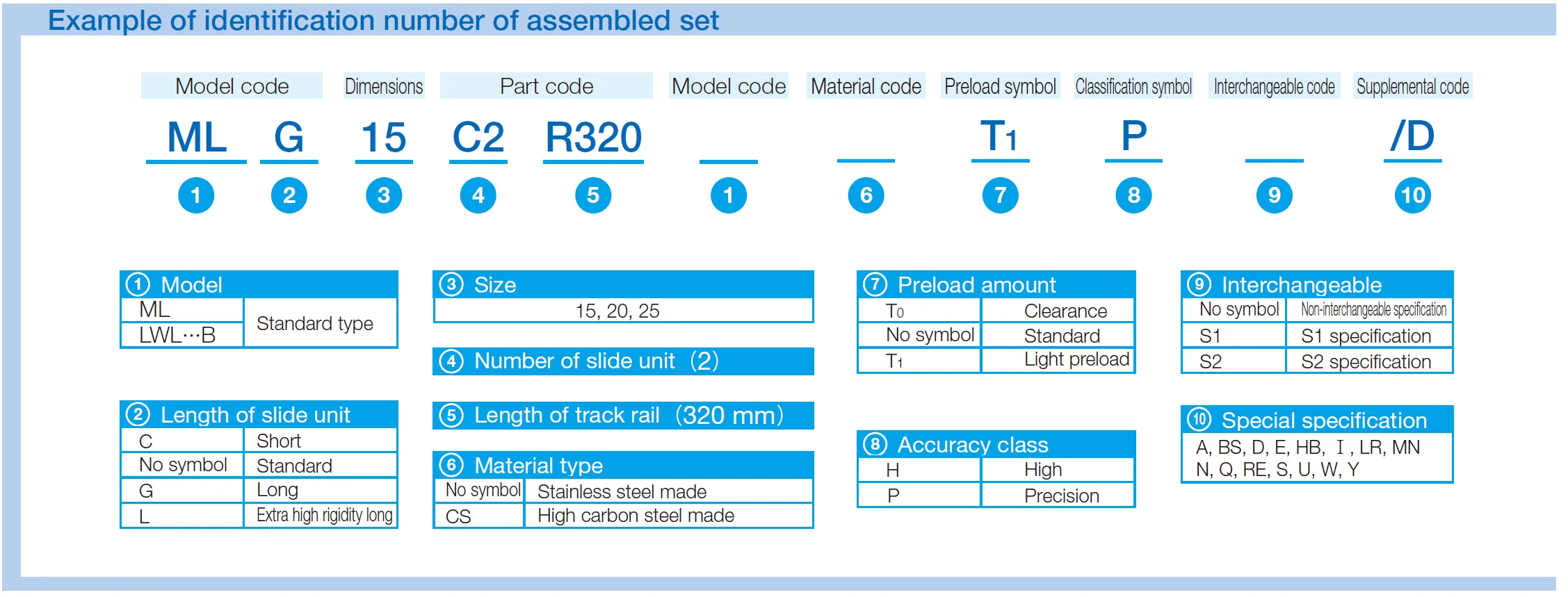

IKO LWL 15-BCS Example of identification number of assembled set
