IKO LWL 1 C-LUBE LINEAR WAY ML
IKO LWL 1 Description

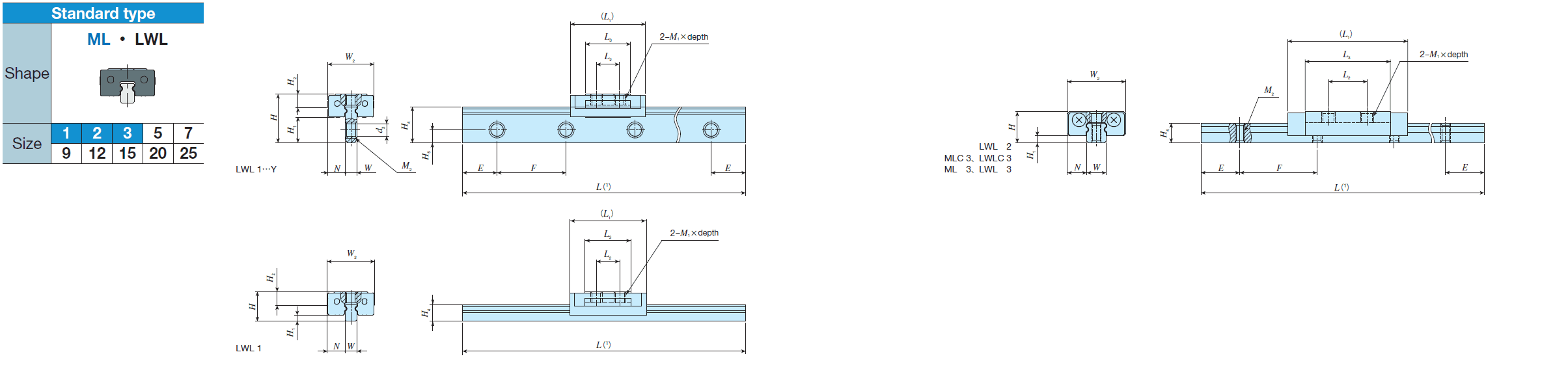

| Identification number | Interchangeable | Mass (Ref.) g | Dimensions of assembly mm | Dimensions of slide unit mm | Dimensions of track rail mm | Mounting bolt for track rail（2） mm
Bolt size×R | Basic dynamic load rating（5）
C N | Basic static load rating（5）
C0 N | Static moment rating（5） | ||||||||||||||||||
| ML series | LWL series （No C-Lube） | Slide unit | Track rail （per 100 mm） | H | H1 | N | W2 | L1 | L2 | L3 | M1×depth | H2 | W | H4 | H5 | M2 | d3 | E | F | T0 N・m | TX N・m | TY N・m | |||||
| － | LWL 1 …Y | － | 0.16 | 2.1 | 4.2 | 2.2 | 1.5 | 4 | 6.5 | 2 | 3.9 | M1 ×0.9 | 1.2 | 1 | 3.1 | 1.1 | M1.4 Through | 1.1 | 3 | 6 | M1×R or M1.4×R（3） | 66.8 | 113 | 0.06 | 0.07 0.47 | 0.09 0.56 | |
| － | LWL 1 | － | 1.0 | 2.5 | 0.5 | 1.4 | － | － | － | － | － | － | |||||||||||||||
| － | LWL 2 | － | 0.9 | 2.8 | 3.2 | 0.7 | 2 | 6 | 12.5 | 4 | 8.8 | M1.4×1.1 | － | 2 | 2 | － | M1 Through | － | 4 | 8 | M1 ×R（4） | 211 | 381 | 0.42 | 0.54 2.9 | 0.64 3.5 | |
| MLC 3 | － | 0.9 |
5.3 |
4 |
1 |
2.5 |
8
| 10.5 11.5 | 3.5 | 7 6.7 | M1.6×1.3 |
－ |
3 |
2.6 |
－ |
M1.6 Through |
－ |
5 |
10 |
M1.6×R（4） | 272 | 406 361 | 0.65 0.58 | 0.49 2.7 0.39 2.7 | 0.58 3.2 0.47 3.2 | ||
| LWLC 3 | － | 1.0 | 251 | ||||||||||||||||||||||||
| ML 3 | － | 1.3 | 14.5 15.5 | 5.5 | 11 10.7 | M2 ×1.3 | 371 | 632 587 | 1.0 0.94 | 1.1 5.6 0.98 5.6 | 1.3 6.6 1.2 6.7 | ||||||||||||||||
| LWL 3 | － | 1.6 | 353 | ||||||||||||||||||||||||
IKO LWL 1 Nots
Notes （1）Track rail lengths L are shown in Table 3.1 on page Ⅱ－10.
（2）Track rail mounting bolts are not appended.
（3）Prepare screws according to mounting structure.
（4）Choose screws whose dimension allow fixing thread depth into track rail R to be less than H4.

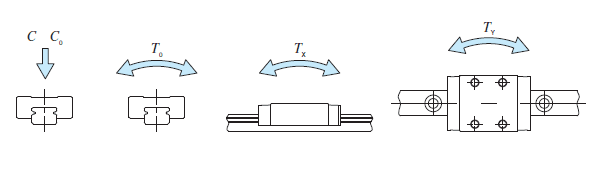

（5） The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below.
The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
Remarks 1. Metal parts are made of stainless steel.
2. Do not disassemble a slide unit from the track rail because steel balls are not retained. No end seal is attached.
3. The specification of small size mounting bolts (M2 and less) are show on page Ⅱ－22. If needed, please contact IKO.

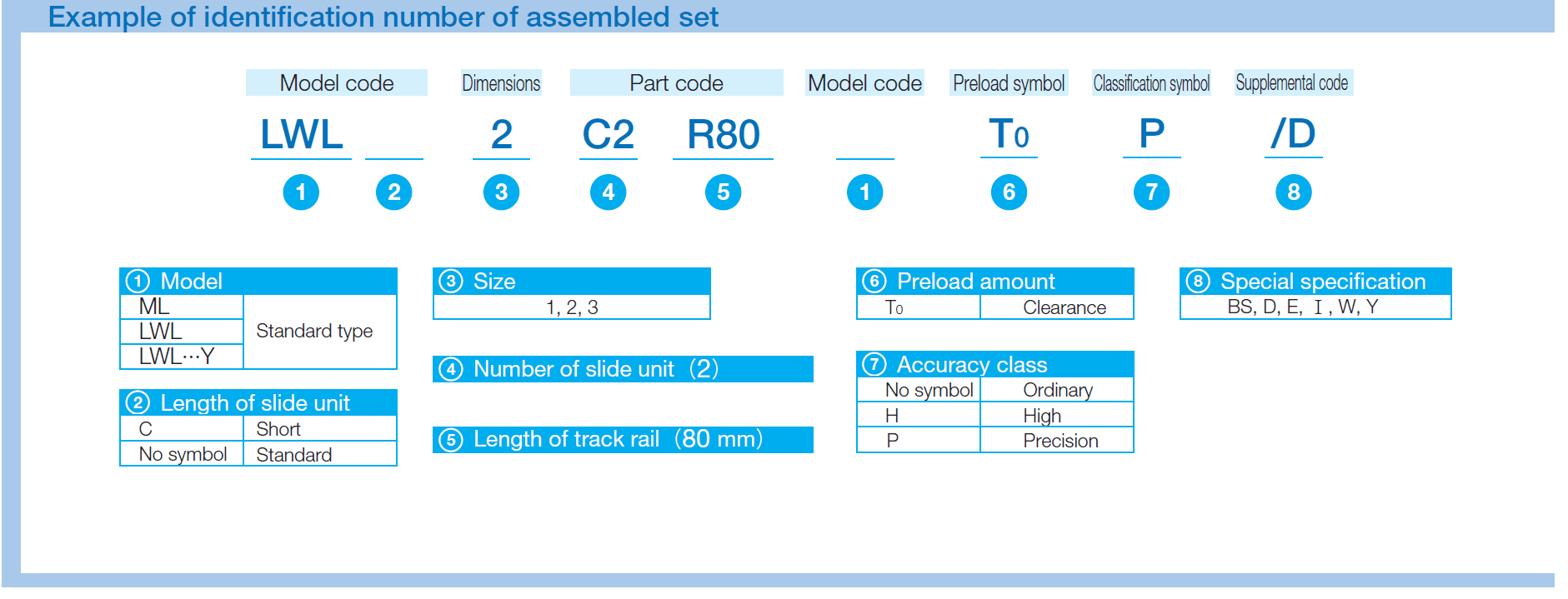

IKO LWL 1 Example of identification number of assembled set
