IKO LWHD 45-M* C-Lube Linear Way MH
IKO LWHD 45-M* Description

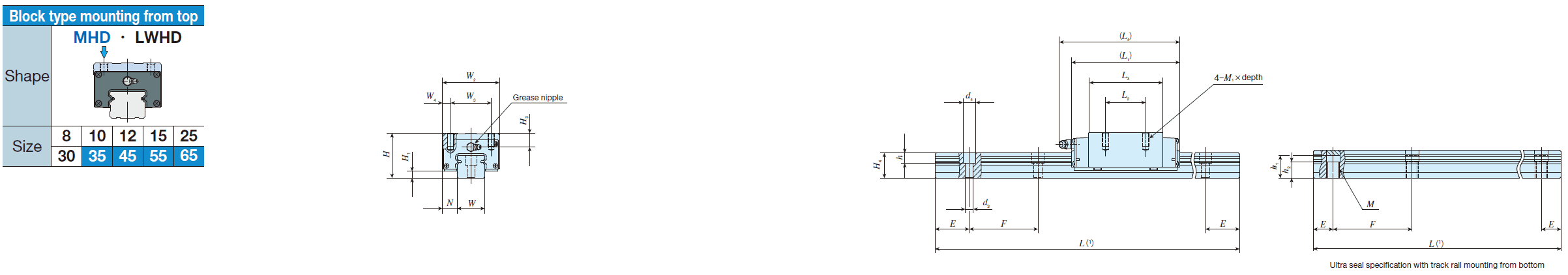

| Identification number | Interchangeable | Mass (Ref.) | Dimensions of assembly mm | Dimensions of slide unit mm | Dimensions of track rail mm | Appended mounting bolt for track rail（3） mm
Bolt size×R | Basic dynamic load rating（4）
C N | Basic static load rating（4）
C0 N | Static moment rating（4） | ||||||||||||||||||||||||
| MH series | LWH series （No C-Lube） | Slide unit kg | Track rail kg/m | H | H1 | N | W2 | W3 | W4 | L1 | L2 | L3 | L4 | M1×depth | H3 | W | H4 | d3 | d4 | h | M | h（1 2） | h2 | E | F | T0 N・m | TX N・m | TY N・m | |||||
| MHD 35 | ○ |
1.74 |
6.85 |
55 | 10 |
18 |
70 |
50 |
10 |
123 |
50 |
86.2 |
135 |
M 8×16 |
17 |
34 |
28 | 9 | 14 | 12 | － | － | － |
40 |
80 | M 8×28 |
48 700 |
53 700 |
823 |
631 3 480 |
579 3 190 | ||
| LWHD 35…B | ○ | 8 | |||||||||||||||||||||||||||||||
| － | LWHD 35…M* | － | |||||||||||||||||||||||||||||||
| － | LWHD 35…MU* | － | － | － | － | M12 | 23 | 16 | － | ||||||||||||||||||||||||
| MHDG 35 | ○ | 2.26 | 10 | 151 | 72 | 114 | 163 | 9 | 14 | 12 | － | － | － | M 8×28 | 59 500 | 71 600 | 1 100 | 1 090 5 570 | 1 000 5 110 | ||||||||||||||
| LWHDG 35 | ○ | 8 | |||||||||||||||||||||||||||||||
| MHD 45 | ○ |
3.30 |
10.7 |
70 | 13 |
20.5 |
86 |
60 |
13 |
147 |
60 |
103.4 |
158 |
M10×20 |
23 |
45 |
34 | 14 | 20 | 17 | － | － | － |
52.5 |
105 | M12×35 |
74 600 |
80 200 |
1 610 |
1 150 6 190 |
1 060 5 690 | ||
| LWHD 45…B | ○ | 14 | |||||||||||||||||||||||||||||||
| － | LWHD 45…M* | － | 10 | ||||||||||||||||||||||||||||||
| － | LWHD 45…MU* | － | － | － | － | M16 | 29 | 17 | － | ||||||||||||||||||||||||
| MHDG 45 | ○ | 4.57 | 13 | 190 | 80 | 146.6 | 201 | 14 | 20 | 17 | － | － | － | M12×35 | 95 200 | 114 000 | 2 280 | 2 240 11 100 | 2 050 10 200 | ||||||||||||||
| LWHDG 45 | ○ | 14 | |||||||||||||||||||||||||||||||
| － | LWHD 55…B | ○ | 5.36 | 15.5 | 80 | 17 | 23.5 | 100 | 75 | 12.5 | 183 | 75 | 132 | 194 | M12×25 | 24 | 53 | 41 | 16 | 23 | 20 | － | － | － | 60 | 120 | M14×45 | 113 000 | 121 000 | 2 870 | 2 210 11 600 | 2 030 10 600 | |
| － | LWHDG 55 | ○ | 7.20 | 235 | 95 | 183.6 | 246 | 142 000 | 168 000 | 3 970 | 4 120 20 200 | 3 780 18 500 | |||||||||||||||||||||
| － | LWHD 65…B | ○ | 9.80 | 22.2 | 90 | 18 | 31.5 | 126 | 76 | 25 | 229 | 70 | 164 | 239 | M16×30 | 20 | 63 | 48 | 18 | 26 | 22 | － | － | － | 75 | 150 | M16×50 | 176 000 | 184 000 | 5 180 | 4 130 22 000 | 3 790 20 200 | |
| － | LWHDG 65 | ○ | 14.3 | 303 | 120 | 238.8 | 313 | 229 000 | 269 000 | 7 560 | 8 530 41 500 | 7 810 38 100 | |||||||||||||||||||||
IKO LWHD 45-M* Nots
Notes （1） Track rail lengths L are shown in Table 2.1 on page Ⅱ－93 and Tables 2.3 and 2.4 on page Ⅱ－95.
（2） Choose bolts whose dimension allow fixing thread depth into track rail to be less than h1.
（3） The appended track rail mounting bolts are hexagon socket head bolts equivalent to JIS B 1176.
In an assembled set of MH series and LWHD…MU model, track rail mounting bolts are not appended.

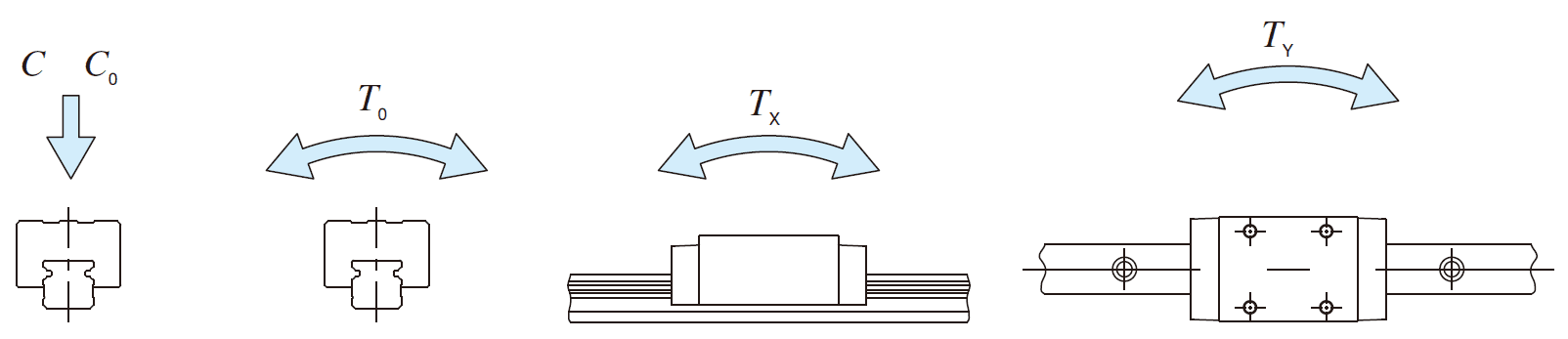

（4） The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below. The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
Remarks 1. The specifications of grease nipple are shown in Table 16 on page Ⅱ－104.
2. The identification numbers with * are our semi-standard items.

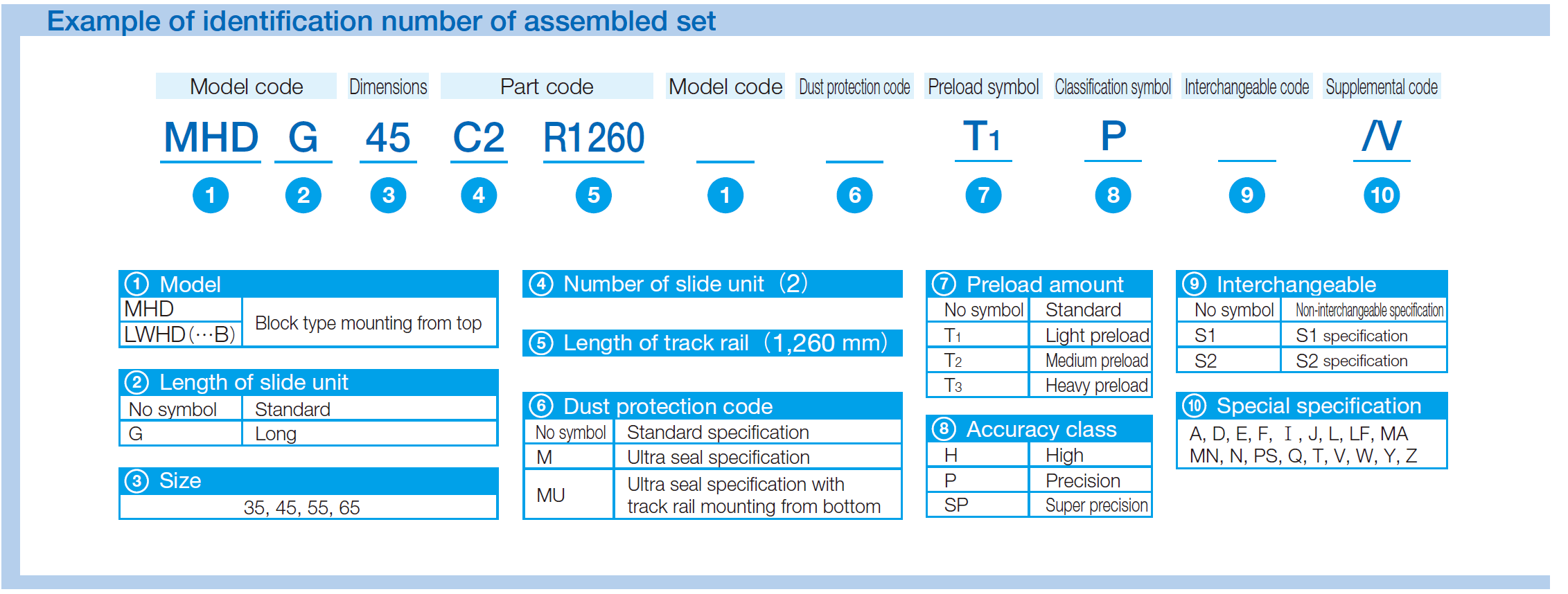

IKO LWHD 45-M* Example of identification number of assembled set
