IKO LWETC 30 C-Lube Linear Way ME

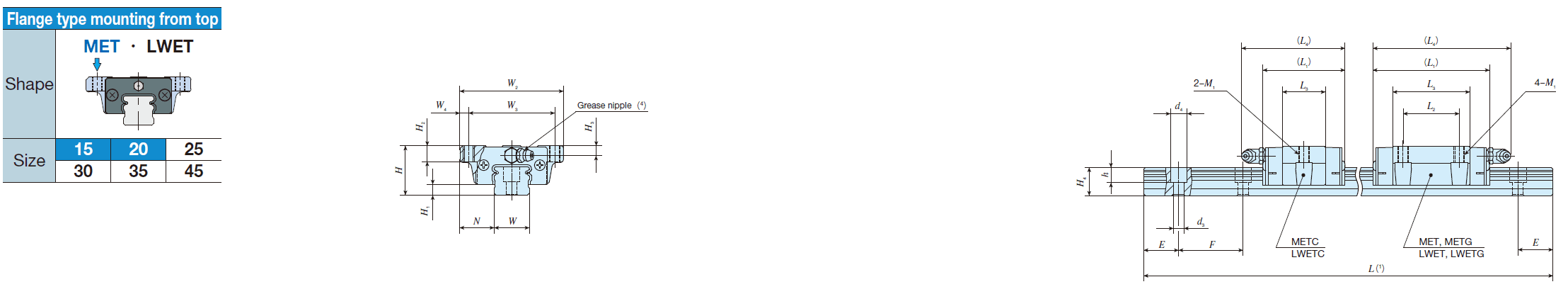

IKO LWETC 30 Description
|
Identification number |
Interchangeable | Mass (Ref.) | Dimensions of assembly
mm |
Dimensions of slide unit
mm |
Dimensions of track rail
mm |
Recommended mounting bolt for track rail（2） mm
Bolt size×R |
Basic dynamic load rating（3）
C N |
Basic static load rating（3）
C0 N |
Static moment rating（3） | ||||||||||||||||||||||
|
ME series |
LWE series
（No C-Lube） |
Slide unit kg | Track rail kg/m |
H |
H1 |
N |
W2 |
W3 |
W4 |
L1 |
L2 |
L3 |
L4 |
M1 |
H2 |
H3 |
W |
H4 |
d3 |
d4 |
h |
E |
F |
T0
N・m |
TX
N・m |
TY
N・m |
|||||
| METC 25 | LWETC 25 | ○ |
0.33 |
3.09 |
33 |
7 |
25 |
73 |
60 |
6.5 |
59 |
－ |
32 |
70 |
M 8 |
10 |
6.5 |
23 |
19 |
7 |
11 |
9 |
20 |
60 |
M 6×20 |
12 400 |
12 300 |
153 |
71.8
480 |
71.8
480 |
|
| METC 25…SL | LWETC 25…SL | ○ | |||||||||||||||||||||||||||||
| MET 25 | LWET 25 | ○ |
0.56 |
83 |
35 |
56 |
94 |
18 100 |
21 100 |
262 |
195
1 090 |
195
1 090 |
|||||||||||||||||||
| MET 25…SL | LWET 25…SL | ○ | |||||||||||||||||||||||||||||
| － | LWET 25…Q | － | 6 | 15 500 | 19 400 | 240 | 175
1 010 |
175
1 010 |
|||||||||||||||||||||||
| METG 25 | LWETG 25 | ○ |
0.73 |
7 |
102 |
50 |
75 |
113 |
22 200 |
28 200 |
349 |
336
1 740 |
336
1 740 |
||||||||||||||||||
| METG 25…SL | LWETG 25…SL | ○ | |||||||||||||||||||||||||||||
| METC 30 | LWETC 30 | ○ |
0.58 |
5.09 |
42 |
10 |
31 |
90 |
72 |
9 |
68 |
－ |
36 |
78 |
M10 |
10 |
8 |
28 |
25 |
7 |
11 |
9 |
20 |
80 |
M 6×25 |
20 600 |
18 800 |
287 |
129
855 |
129
855 |
|
| METC 30…SL | LWETC 30…SL | ○ | |||||||||||||||||||||||||||||
| MET 30 | LWET 30 | ○ |
0.99 |
97 |
40 |
64.8 |
107 |
29 500 |
31 300 |
479 |
328
1 920 |
328
1 920 |
|||||||||||||||||||
| MET 30…SL | LWET 30…SL | ○ | |||||||||||||||||||||||||||||
| － | LWET 30…Q | － | 0.97 | 5.04 | 96 | 106 | 21 600 | 26 400 | 398 | 278
1 580 |
278
1 580 |
||||||||||||||||||||
| METG 30 | LWETG 30 | ○ |
1.50 |
5.09 |
129 |
60 |
96.5 |
139 |
39 200 |
47 000 |
718 |
704
3 690 |
704
3 690 |
||||||||||||||||||
| METG 30…SL | LWETG 30…SL | ○ | |||||||||||||||||||||||||||||
| METC 35 | LWETC 35 | ○ | 0.84 |
6.85 |
48 |
11 |
33 |
100 |
82 |
9 |
78 | － | 41.6 | 90 |
M10 |
13 |
10 |
34 |
28 |
9 |
14 |
12 |
20 |
80 |
M 8×30 |
29 900 | 26 800 | 412 | 176
1 190 |
162
1 100 |
|
| MET 35 | LWET 35 | ○ | 1.52 | 111 |
50 |
74.6 | 123 | 42 900 | 44 700 | 686 | 448
2 660 |
412
2 450 |
|||||||||||||||||||
| － | LWET 35…Q | － | 1.53 | 6.84 | 110 | 76.6 | 122 | 30 500 | 37 600 | 687 | 482
2 550 |
482
2 550 |
|||||||||||||||||||
| MET 45 | LWET 45 | ○ | 2.46 | 11.2 | 60 | 14 | 37.5 | 120 | 100 | 10 | 125 | 60 | 81.4 | 136 | M12 | 15 | 13 | 45 | 34 | 11 | 17.5 | 14 | 22.5 | 105 | M10×35 | 61 100 | 60 200 | 1 210 | 672
4 070 |
618
3 750 |
|
IKO LWETC 30 Nots
Notes （1）Track rail lengths L are shown in Tables 2.1 and 2.2 on page Ⅱ－67.
（2）Track rail mounting bolts are not appended. Hexagon socket head bolts of JIS B 1176 with strength division 12.9 are recommended.

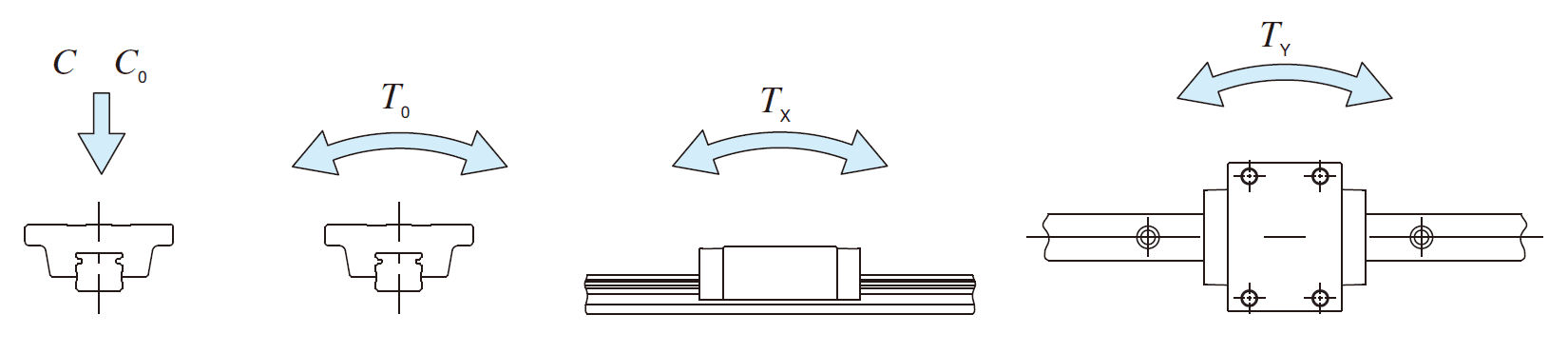

（3） The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below. The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
（4）The shapes of grease nipple vary by size. The specifications are shown in Table 15 on page Ⅱ－73.

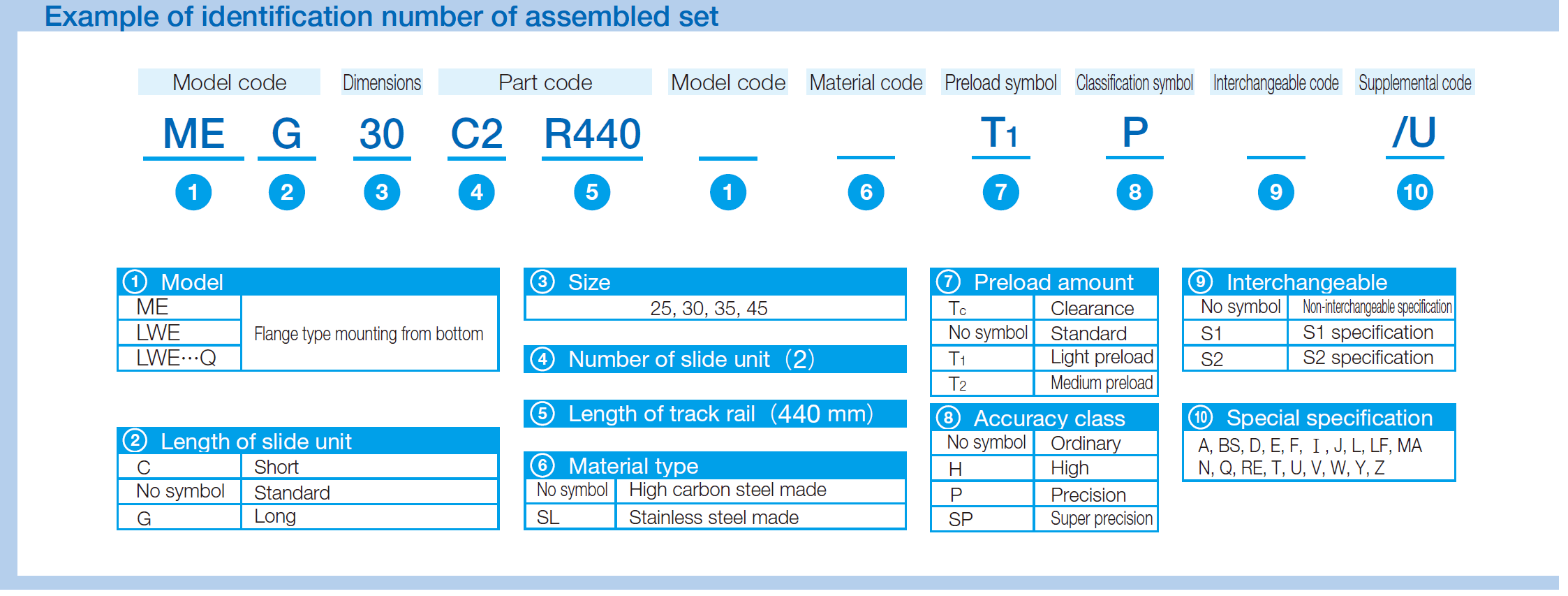

IKO LWETC 30 Example of identification number of assembled set
