IKO LRXD 30 C-Lube Linear Roller Way Super MX
IKO LRXD 30 Description
| Identification number | Interchangeable | Mass (Ref.) | Dimensions of assembly mm | Dimensions of slide unit mm | Dimensions of track rail mm | Appended mounting bolt for track rail（2）
Bolt size×R | Basic dynamic load rating（3）
C N | Basic static load rating（3）
C0 N | Static moment rating（3） | |||||||||||||||||||||
| MX series | LRX series （No C-Lube） | Slide unit kg | Track rail kg/m | H | H1 | N | W2 | W3 | W4 | L1 | L2 | L3 | L4 | M1×depth | H3 | W | H4 | d3 | d4 | h | E | F | T0 N・m | TX N・m | TY N・m | |||||
| MXDC 25 | LRXDC 25 | ○ | 0.36 |
3.59 |
40 |
6 |
12.5 |
48 |
17.5 |
6.5 | 74 | － | 36 | 83 |
M6×12 |
9 |
23 |
24.5 |
7 |
11 |
9 |
30 |
60 |
M6×25 | 21 600 | 33 800 | 500 | 213 1 810 | 213 1 810 | |
| － | LRXDC 25…SL | ○ | ||||||||||||||||||||||||||||
| MXD 25 | LRXD 25 | ○ | 0.55 | 98 | 35 | 60 | 107 | 32 100 | 56 300 | 833 | 573 3 800 | 573 3 800 | ||||||||||||||||||
| MXD 25…SL | LRXD 25…SL | ○ | ||||||||||||||||||||||||||||
| MXDG 25 | LRXDG 25 | ○ | 0.68 | 113 | 50 | 75 | 122 | 38 200 | 70 300 | 1 040 | 885 5 380 | 885 5 380 | ||||||||||||||||||
| － | LRXDG 25…SL | ○ | ||||||||||||||||||||||||||||
| MXDL 25 | － | － | 0.88 | 137 | 70 | 99 | 146 | 47 400 | 92 800 | 1 370 | 1 530 8 480 | 1 530 8 480 | ||||||||||||||||||
| MXDC 30 | LRXDC 30 | ○ | 0.60 |
5.01 |
45 |
6.5 |
16 |
60 |
20 |
10 | 85 | － | 42.4 | 95 |
M8×12 |
9.5 |
28 |
28 |
9 |
14 |
12 |
40 |
80 |
M8×28 | 29 200 | 44 600 | 808 | 329 2 740 | 329 2 740 | |
| － | LRXDC 30…SL | ○ | ||||||||||||||||||||||||||||
| MXD 30 | LRXD 30 | ○ | 0.92 | 113 | 40 | 70.4 | 123 | 43 400 | 74 400 | 1 350 | 883 5 780 | 883 5 780 | ||||||||||||||||||
| MXD 30…SL | LRXD 30…SL | ○ | ||||||||||||||||||||||||||||
| MXDG 30 | LRXDG 30 | ○ | 1.18 | 134 | 60 | 91.4 | 144 | 53 200 | 96 700 | 1 750 | 1 470 8 740 | 1 470 8 740 | ||||||||||||||||||
| － | LRXDG 30…SL | ○ | ||||||||||||||||||||||||||||
| MXDL 30 | － | － | 1.52 | 162 | 80 | 119.4 | 172 | 65 600 | 126 000 | 2 290 | 2 500 13 600 | 2 500 13 600 | ||||||||||||||||||
IKO LRXD 30 Nots
Notes （1） Track rail lengths L are shown in Tables 2.1 and 2.2 on page Ⅱ－175 and Tables 2.3 and 2.4 on page Ⅱ－176.
（2） The appended track rail mounting bolts are hexagon socket head bolts equivalent to JIS B 1176. For stainless steel model, stainless
steel bolts are appended.
In an assembled set of MX series, track rail mounting bolts are not appended.

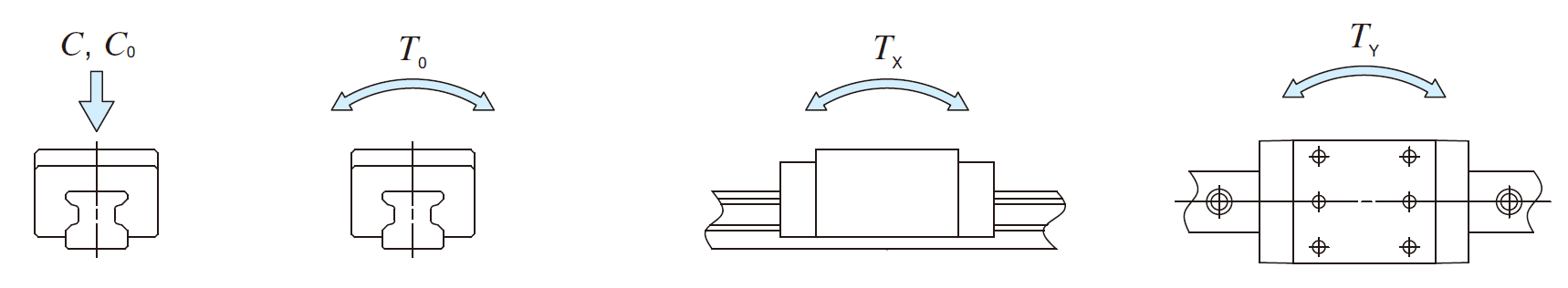

（3） The direction of basic dynamic load rating (C), basic static load rating (C0), and static moment rating (T0, TX, TY) are shown in the
sketches below. The upper values of TX and TY are for one slide unit and the lower values are for two slide units in close contact.
（4） The shapes of grease nipple vary by size. The specifications are shown in Table 15 on page Ⅱ－188.
Remark: A grease nipple mounting thread hole is provided on the right and left end plates respectively.
IKO LRXD 30 Example of identification number of assembled set
