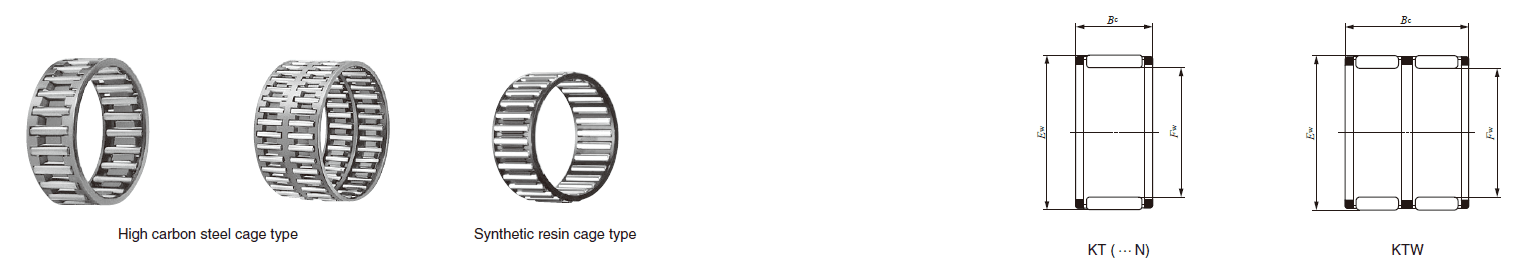

IKO KT 354013,KT 354017 NEEDLE ROLLER CAGES FOR GENERAL USAGE

IKO KT 354013,KT 354017 Description

Shaft dia. mm	Identification number		Mass (Ref.) g	Boundary dimensions mm			Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(1) min-1
Shaft dia. mm	Identification number		Mass (Ref.) g	F_w	E_w	B_c	Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(1) min-1
	KT	354013	18.1	35	40	13	15 500	25 800	14 000
	KT	354017	23	35	40	17	20 500	36 900	14 000
	KT	354026	34.5	35	40	26	28 700	56 800	14 000
	KT	354113	22.5	35	41	13	17 700	26 800	14 000
35	KT	354216	32	35	42	16	23 100	33 900	14 000
	KT	354218	35.5	35	42	18	26 000	39 500	14 000
	KT	354220	40.5	35	42	20	27 400	42 300	14 000
	KT	354230	59	35	42	30	40 600	70 300	14 000
	KT	354525	68.5	35	45	25	42 100	57 900	14 000
36	KT	364216	27.5	36	42	16	21 900	35 700	14 000
	KT	384417	30.5	38	44	17	23 800	40 400	13 000
38	KT KT	384620 384632	50 80	38 38	46 46	20 32	30 500 45 400	45 400 75 700	13 000 13 000
	KT	404513	20.5	40	45	13	16 800	29 800	12 000
	KT	404517	26.5	40	45	17	22 200	42 700	12 000
	KT	404527	41	40	45	27	32 400	69 200	12 000
	KT	404817	44	40	48	17	28 100	41 600	12 000
	KT	404820	52.5	40	48	20	31 400	48 000	12 000
	KT	404825	64.5	40	48	25	39 300	64 000	12 000
40	KT	404834	87.5	40	48	34	51 100	89 600	12 000
40	KT	405015	48.5	40	50	15	28 200	35 900	12 000
	KT	405017	56.5	40	50	17	30 200	39 200	12 000
	KT	405020	61	40	50	20	35 700	48 600	12 000
	KTW 405238		158	40	52	38	65 000	93 000	12 000
	KT	405432	144	40	54	32	66 800	87 200	12 000
	KT	405450	215	40	54	50	93 600	134 000	12 000
	KT	405463	270	40	54	63	115 000	175 000	12 000

Shaft dia. mm	Identification number	Mass (Ref.) g	Boundary dimensions mm			Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(1) min-1
Shaft dia. mm	Identification number	Mass (Ref.) g	F_w	E_w	B_c	Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(1) min-1
41	KT 414835	78.5	41	48	35	47 800	90 800	12 000
	KT 424717	27.5	42	47	17	22 500	44 200	12 000
	KT 424815	30	42	48	15	22 400	38 600	12 000
42	KT 424816	32	42	48	16	24 000	42 100	12 000
	KT 425020	55	42	50	20	32 400	50 600	12 000
	KT 425030	80.5	42	50	30	48 200	84 400	12 000
	KT 455017	29.5	45	50	17	23 300	47 100	11 000
	KT 455027	46	45	50	27	34 800	79 000	11 000
	KT 455320	58	45	53	20	33 200	53 300	11 000
45	KT 455325	71.5	45	53	25	41 500	71 100	11 000
	KT 455330	86	45	53	30	47 800	85 300	11 000
	KT 455335	101	45	53	35	53 900	99 500	11 000
	KT 455527	90.5	45	55	27	50 300	78 200	11 000
48	KT 485320	37	48	53	20	26 800	57 600	10 000
48	KT 485420	46	48	54	20	30 600	60 400	10 000
	KT 505520	38.5	50	55	20	27 100	59 300	10 000
	KT 505527	50.5	50	55	27	35 600	84 100	10 000
	KT 505820	65	50	58	20	35 900	61 100	10 000
50	KT 505825 KT 505825N	80 66.3	50 50	58 58	25 25	44 900 51 400	81 500 97 800	10 000 10 000
	KT 505830	96.5	50	58	30	51 700	97 800	10 000
	KT 505835	113	50	58	35	58 300	114 000	10 000
52	KT 525817 KT 526024	41 80	52 52	58 60	17 24	28 300 44 000	56 000 80 800	9 500 9 500

Note(1) 　Allowable rotational speed applies to oil lubrication. For grease lubrication, a maximum of 50% of this value is allowable.
