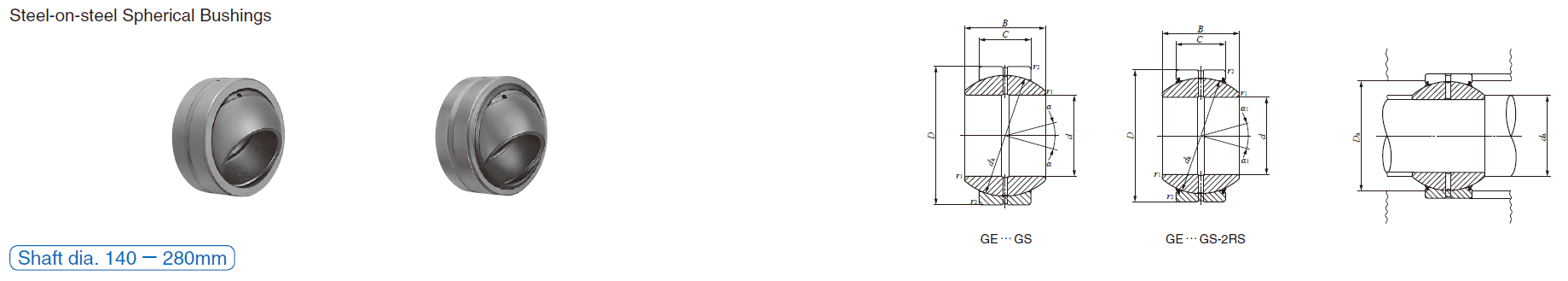

IKO GE 160GS,GE 160GS-2RS SPHERICAL BUSHINGS
IKO GE 160GS,GE 160GS-2RS Description
|
Shaft dia.
mm |
Identification number | Mass (Ref.)
kg |
Boundary dimensions mm | Permissible tilting angle degree | ||||||||
|
Without seals |
With seals |
d | D | B | C | dk | r (1)
1s min |
r (1)
2s min |
α | α1 | ||
| 140 | GE 140GS | GE 140GS-2RS | 19.2 | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 15 |
| 160 | GE 160GS | GE 160GS-2RS | 25.4 | 160 | 260 | 135 | 80 | 225 | 1 | 1.1 | 16 | 14 |
| 180 | GE 180GS | GE 180GS-2RS | 34.7 | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 13 |
| 200 | GE 200GS | GE 200GS-2RS | 43.8 | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 14 |
| 220 | GE 220GS | GE 220GS-2RS | 51.3 | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 14 |
| 240 | GE 240GS | GE 240GS-2RS | 66.1 | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 14 |
| 260 | GE 260GS | GE 260GS-2RS | 81.8 | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 14 |
| 280 | GE 280GS | GE 280GS-2RS | 97.4 | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 14 |
| Mounting dimensions mm | Dynamic load capacity
Cd N |
Static load capacity
Cs N |
|||
| da | Da | ||||
| Min. | Max.(2) | Max. | Min. | ||
| 145.5 | 152 | 224.5 | 195 | 1 570 000 | 9 410 000 |
| 165.5 | 180 | 253 | 221 | 1 770 000 | 10 600 000 |
| 187 | 196 | 283 | 244 | 2 450 000 | 14 700 000 |
| 207 | 220 | 313 | 269 | 2 700 000 | 16 200 000 |
| 227 | 243.5 | 333 | 296 | 2 940 000 | 17 700 000 |
| 247 | 263.5 | 363 | 320 | 3 510 000 | 21 000 000 |
| 267 | 283.5 | 393 | 345 | 4 120 000 | 24 700 000 |
| 287 | 310.5 | 423 | 371 | 4 410 000 | 26 500 000 |
IKO GE 160GS,GE 160GS-2RS Nots
Notes(1) Minimum allowable value of chamfer dimensions r1 and r2
(2) When Spherical Bushings are used with full tilting angle, the shaft shoulder dimension must be less than the maximum value of da.
Remarks1. The inner ring and the outer ring have an oil groove and two oil holes, respectively.
2. No grease is prepacked. Perform proper lubrication.
