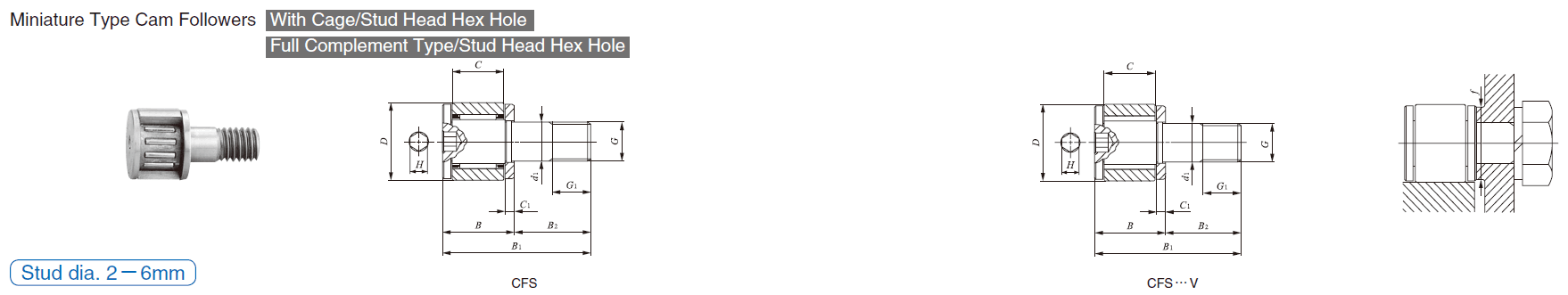

IKO CFS 6 F,CFS 6 FV CAM FOLLOWERS
IKO CFS 6 F,CFS 6 FV Description
|
Stud dia. mm |
Identification number | Mass (Ref.)
g |
Boundary dimensions mm | |||||||||
| With cage | Full complement | D | C | d1 | G | G1 | B | |||||
| 2 | CFS 2
─ |
F | ─
CFS 2 |
FV |
0.6
0.6 |
4.5
4.5 |
2.5
2.5 |
2
2 |
M2 M2 | × 0.4
× 0.4 |
2
2 |
4
4 |
| 2.5 | CFS 2.5 F
─ |
─
CFS 2.5 FV |
1
1 |
5
5 |
3
3 |
2.5
2.5 |
M2.5 × 0.45
M2.5 × 0.45 |
2.5
2.5 |
4.5
4.5 |
|||
| 3 | CFS 3
─ |
F | ─
CFS 3 |
FV |
2
2 |
6
6 |
4
4 |
3
3 |
M3 M3 | × 0.5
× 0.5 |
3
3 |
5.5
5.5 |
| 4 | CFS 4
─ |
F | ─
CFS 4 |
FV |
4
4 |
8
8 |
5
5 |
4
4 |
M4 M4 | × 0.7
× 0.7 |
4
4 |
7
7 |
| 5 | CFS 5
─ |
F | ─
CFS 5 |
FV |
7
7 |
10
10 |
6
6 |
5
5 |
M5 M5 | × 0.8
× 0.8 |
5
5 |
8
8 |
| 6 | CFS 6
─ |
F | ─
CFS 6 |
FV |
13
13 |
12
12 |
7
7 |
6
6 |
M6 M6 | × 1
× 1 |
6
6 |
9.5
9.5 |
| Mounting dimension
f Min. mm |
Maximum tightening torque
N-cm |
Basic dynamic load rating
C
N |
Basic static load rating
C0
N |
Maximum allowable static load
N |
||||
| B1 | B2 | C1 | H | |||||
| 8 | 4 | 0.7 | 0.9 | 4.3 | 9.1 | 230 | 161 | 161 |
| 8 | 4 | 0.7 | 0.9 | 4.3 | 9.1 | 614 | 587 | 229 |
| 9.5 | 5 | 0.7 | 0.9 | 4.8 | 18.7 | 342 | 281 | 281 |
| 9.5 | 5 | 0.7 | 0.9 | 4.8 | 18.7 | 800 | 862 | 360 |
| 11.5 | 6 | 0.7 | 1.3 | 5.8 | 33.5 | 504 | 488 | 484 |
| 11.5 | 6 | 0.7 | 1.3 | 5.8 | 33.5 | 1 140 | 1 430 | 484 |
| 15 | 8 | 1.0 | 1.5 | 7.7 | 77.7 | 897 | 894 | 894 |
| 15 | 8 | 1.0 | 1.5 | 7.7 | 77.7 | 1 900 | 2 400 | 919 |
| 18 | 10 | 1.0 | 2 | 9.6 | 158 | 1 250 | 1 480 | 1 480 |
| 18 | 10 | 1.0 | 2 | 9.6 | 158 | 2 540 | 3 760 | 1 570 |
| 21.5 | 12 | 1.2 | 2.5 | 11.6 | 268 | 1 670 | 1 760 | 1 760 |
| 21.5 | 12 | 1.2 | 2.5 | 11.6 | 268 | 3 690 | 5 000 | 2 150 |
IKO CFS 6 F,CFS 6 FV Nots
Remarks1. No oil hole is provided.
2. Provided with prepacked grease.
