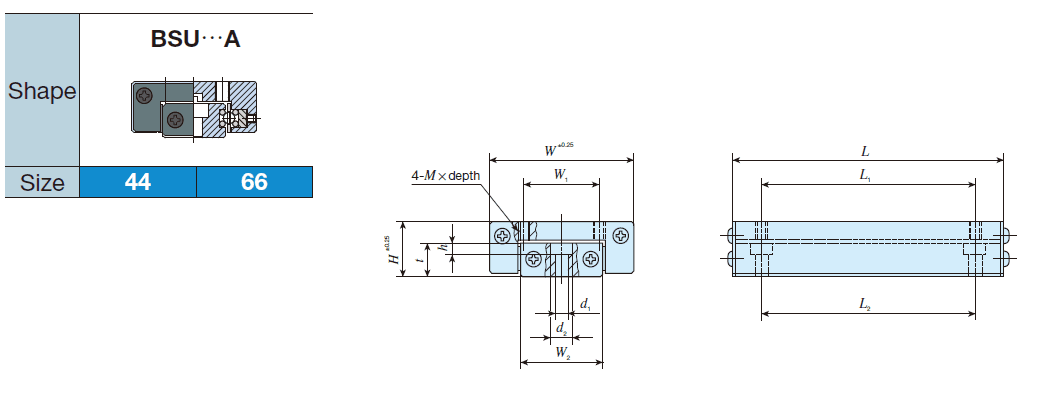

IKO BSU 66-150 A Linear Slide Unit
IKO BSU 66-150 A Description
|
Identification number |
Mass
(Ref.) g |
Nominal dimensions
mm |
Table mounting dimensions
mm |
Bed mounting dimensions
mm |
Allowable load
F N |
|||||||||||
| H | W | L | Stroke length | W1 | L1 | M×depth | W2 | t | L2 | d1 | d2 | h | ||||
| BSU 44- 50 A | 110 |
20 |
44 |
50 | 25 |
20 |
35 |
M5×7 |
21.8 |
12.3 |
35 |
5.3 |
10 |
5.3 |
98.1 | |
| BSU 44- 80 A | 175 | 80 | 50 | 65 | 65 | 177 | ||||||||||
| BSU 44-100 A | 220 | 100 | 75 | 85 | 85 | 235 | ||||||||||
| BSU 66-100 A | 420 |
25 |
66 |
100 | 50 |
35 |
75 |
M5×8 |
37 |
16 |
75 |
5.3 |
10 |
5.3 |
265 | |
| BSU 66-125 A | 525 | 125 | 75 | 100 | 100 | 392 | ||||||||||
| BSU 66-150 A | 625 | 150 | 100 | 125 | 125 | 510 | ||||||||||
