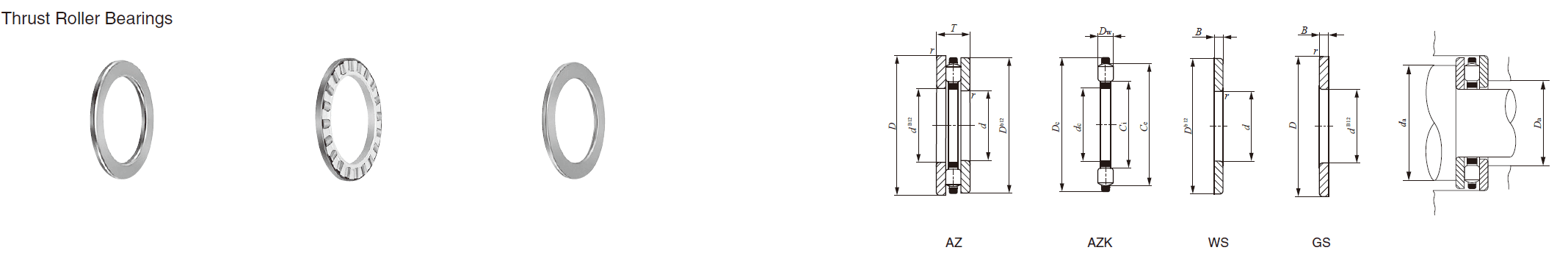

IKO AZ 305216,AZK 30527.5 THRUST BEARINGS

IKO AZ 305216,AZK 30527.5 Description

Shaft dia. mm	Identification number
Shaft dia. mm	Thrust roller bearing		Mass (Ref.) g	Thrust roller bearing		Mass (Ref.) g	Inner ring		Outer ring		Mass (Ref.) g
10	AZ	10249	24.6	AZK	10243.5	8.6	WS	1024	GS	1024	8
12	AZ	12269	26.5	AZK	12263.5	8.7	WS	1226	GS	1226	8.9
15	AZ	15289	28	AZK	15283.5	9.4	WS	1528	GS	1528	9.3
17	AZ	17309	30.5	AZK	17303.5	10.1	WS	1730	GS	1730	10.2
20	AZ	203510	45.5	AZK	20354.5	17.9	WS	2035	GS	2035	13.8
25	AZ	254211	70	AZK	25425	28	WS	2542	GS	2542	21
30	AZ AZ	304711 305216	79 160	AZK AZK	30475 30527.5	31 70	WS WS	3047 3052	GS GS	3047 3052	24 45
35	AZ AZ	355212 356218	99 260	AZK AZK	35525 35627.5	36 98	WS WS	3552 3562	GS GS	3552 3562	31.5 81
40	AZ AZ	406013 406819	139 310	AZK AZK	40606 40689	54 132	WS WS	4060 4068	GS GS	4060 4068	42.5 89
45	AZ AZ	456514 457320	169 360	AZK AZK	45656 45739	62 144	WS WS	4565 4573	GS GS	4565 4573	53.5 108
50	AZ AZ	507014 507822	185 430	AZK AZK	50706 507811	68 194	WS WS	5070 5078	GS GS	5070 5078	58.5 118
55	AZ AZ	557816 559025	275 725	AZK AZK	55786 559011	89 275	WS WS	5578 5590	GS GS	5578 5590	93 225
60	AZ 608517 AZ 609526 AZ 6013026		345 770 2 090	AZK 60857.5 AZK 609511 AZK 6013010		135 290 790	WS 6085 WS 6095 WS 60130		GS 6085 GS 6095 GS 60130		105 240 650
65	AZ 659018 AZ 6510027		380 860	AZK 65907.5 AZK 6510011		132 310	WS 6590 WS 65100		GS 6590 GS 65100		124 275

Boundary dimensions mm										Standard mounting dimensions mm		Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(2) min-1
d	D	T	d_c	D_c	D_w	B	(1) rs min	C_i	C_e	d_a Min.	D_a Max.	Basic dynamic load rating C N	Basic static load rating C₀ N	Allowable rotational speed(2) min-1
10	24	9	10.04	23.6	3.5	2.75	0.3	13	21	21	13	8 990	19 100	18 000
12	26	9	12.04	25.6	3.5	2.75	0.3	15	23	23	16	10 400	23 900	16 000
15	28	9	15.04	27.6	3.5	2.75	0.3	17	25	25	18	10 200	23 900	14 000
17	30	9	17.04	29.6	3.5	2.75	0.3	19	27	27	20	11 400	28 600	13 000
20	35	10	20.04	34.6	4.5	2.75	0.3	22	33	33	23	19 000	48 700	11 000
25	42	11	25.05	41.6	5	3	0.6	28	39	39	28	22 700	60 700	9 000
30	47	11	30.05	46.5	5	3	0.6	33	44	44	33	27 400	81 000	8 000
30	52	16	30.05	51.5	7.5	4.25	0.6	35	49	48	36	38 400	95 700	7 500
35	52	12	35.05	51.5	5	3.5	0.6	38	49	49	39	29 100	91 100	7 000
35	62	18	35.05	61.5	7.5	5.25	1	42	58	57	43	47 900	135 000	6 500
40	60	13	40.05	59.5	6	3.5	0.6	44	57	57	44	41 700	133 000	6 000
40	68	19	40.05	67.5	9	5	1	45	64	64	46	68 700	195 000	5 500
45	65	14	45.05	64.5	6	4	0.6	49	62	62	49	40 800	133 000	5 500
45	73	20	45.05	72.5	9	5.5	1	50	69	69	51	75 700	227 000	5 000
50	70	14	50.05	69.5	6	4	0.6	54	67	67	54	43 300	148 000	5 000
50	78	22	50.05	77.5	11	5.5	1	55	74	73	56	84 300	232 000	4 500
55	78	16	55.05	77.5	6	5	0.6	59	75	75	60	51 700	192 000	4 500
55	90	25	55.05	89.5	11	7	1	63	85	84	63	108 000	332 000	4 000
60	85	17	60.05	84.5	7.5	4.75	1	65	81	81	66	64 600	224 000	4 000
60	95	26	60.05	94.5	11	7.5	1	68	90	89	68	106 000	332 000	4 000
60	130	26	60.05	129.5	10	8	1.5	79	119	119	80	158 000	634 000	3 000
65	90	18	65.05	89.5	7.5	5.25	1	70	86	86	71	68 300	247 000	4 000
65	100	27	65.05	99.5	11	8	1	73	95	94	73	116 000	379 000	3 500

IKO AZ 305216,AZK 30527.5 THRUST BEARINGS

IKO AZ 305216,AZK 30527.5 Nots

Notes(1)　Minimum allowable value of chamfer dimension r
(2)　Allowable rotational speed applies to oil lubrication. For grease lubrication, a maximum of 25% of this value is allowable.
