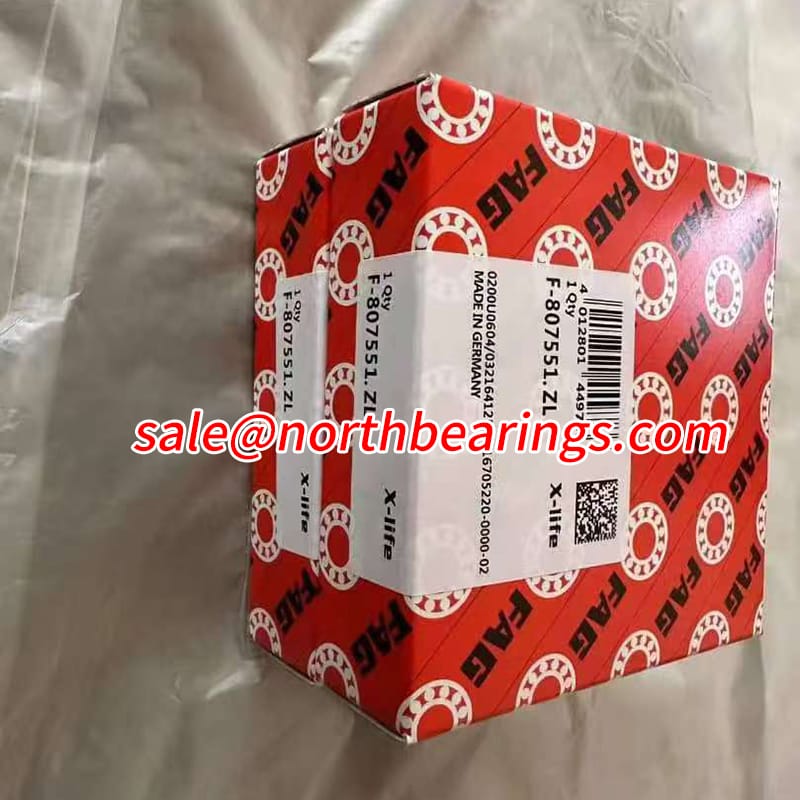

FAG F-807551.ZL Single Row Cylindrical Roller Bearing – Insulated Railway Bearing
The FAG F-807551.ZL is a high-precision, single-row cylindrical roller bearing designed specifically for demanding applications in the railway industry. Known for its durability, high load-carrying capacity, and specialized insulation, this bearing plays a critical role in ensuring the reliable operation of railway vehicles, including locomotives and passenger cars. As part of the Schaeffler Group’s FAG brand, this bearing combines advanced engineering and innovative materials to meet the rigorous requirements of the railway sector.
Design and Construction
The FAG F-807551.ZL is designed as a single-row cylindrical roller bearing, a configuration that provides several performance advantages. The cylindrical rollers are arranged parallel to each other, allowing the bearing to support high radial loads while accommodating slight axial displacement between the shaft and the housing. This makes the F-807551.ZL particularly suitable for applications where precise axial positioning is not critical, but where substantial radial load support is necessary.。
Constructed from high-quality, hardened steel, both the inner and outer rings of the bearing exhibit exceptional strength and wear resistance. The rollers are crafted to precise tolerances, ensuring even load distribution and reducing stress concentrations within the bearing. The cage, typically made of a durable polymer or steel, holds the rollers in place, minimizing friction and heat generation during operation. This results in smoother performance, reduced noise, and extended bearing life.
Insulation Features
A distinguishing feature of the FAG F-807551.ZL bearing is its insulation capability, which is crucial for railway applications. The bearing is equipped with a specialized coating that insulates its external surfaces, preventing the passage of electrical currents through the bearing. In railway systems, electrical currents can be generated from traction motors, electric braking systems, or other sources, and can cause severe damage to bearings, including electrical pitting and fluting.
The insulation layer on the F-807551.ZL bearing provides effective protection against such currents, enhancing the bearing’s longevity and reliability. This insulation is designed to withstand high voltage levels, making it suitable for the electrical environments typically encountered in railway applications. By preventing electrical damage, the bearing helps maintain the integrity of the overall railway system, reducing maintenance requirements and avoiding unplanned downtime.
Performance and Load Capacity
The FAG F-807551.ZL bearing excels in applications requiring high radial load capacity. Its cylindrical roller design allows for the distribution of loads over a large contact area, which reduces stress and minimizes the risk of bearing failure under heavy loads. This is particularly important in railway applications, where bearings are subject to constant, high-magnitude forces due to the movement and weight of the train.
The bearing’s design also permits a degree of axial displacement, which can accommodate minor misalignments and thermal expansions that occur during operation. This flexibility enhances the bearing’s performance in dynamic railway environments, where precise alignment cannot always be guaranteed.
Applications in Railway Systems
The FAG F-807551.ZL is widely used in railway applications, including in the wheelsets, traction motors, and gearboxes of locomotives and passenger cars. Its robust construction and high load-bearing capacity make it ideal for these demanding roles, where reliability and performance are essential. The insulation feature adds an extra layer of protection, ensuring that the bearing can withstand the electrical stresses commonly encountered in railway environments.
Maintenance and Longevity
The high-quality materials and precision engineering of the FAG F-807551.ZL contribute to its low maintenance requirements. Its ability to resist electrical damage and handle heavy loads means that the bearing can operate for extended periods without the need for frequent interventions. This is a significant advantage in the railway industry, where maintenance windows are limited, and operational efficiency is a top priority.
Conclusion
The FAG F-807551.ZL single row cylindrical roller bearing is a high-performance component specifically designed for railway applications. Its combination of high radial load capacity, durable construction, and electrical insulation make it an ideal choice for demanding railway environments. By providing reliable, long-lasting performance, the F-807551.ZL helps ensure the safe and efficient operation of railway systems, reflecting FAG’s commitment to excellence in bearing technology.
