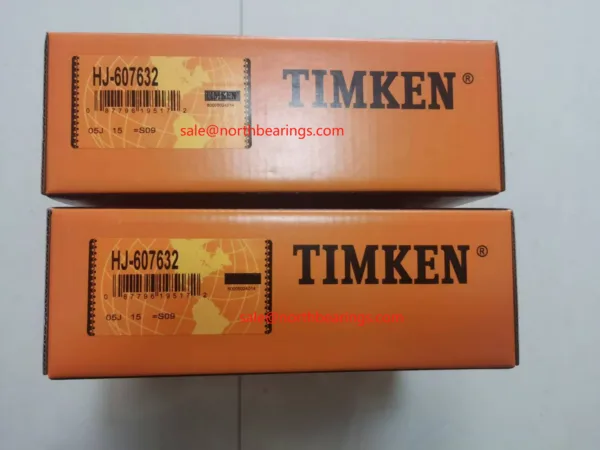

TIMKEN -Torrington HJ-607632 Needle Roller bearing,Cylindrical Roller Radial Bearings-HJ Series 95,250 X 120,650 X 50,80 (mm)
Description
| Fw Bore (nom.) inch | 3.7500 |
| Fw Bore (nom.) mm | 95,250 |
| D Outside Diameter (nom.) inch | 4.7500 |
| D Outside Diameter (nom.) mm | 120,650 |
| C/B Width (nom.) inch | 2.000 |
| C/B Width (nom.) mm | 50,80 |
| Limiting Speed rpm | 4 540 |
| ra* Housing Fillet (max.) inch | 0.10 |
| ra* Housing Fillet (max.) mm | 2,5 |
| Used with Inner Ring Designation † | IR-506032 IR-526032 |
| Weight | 1.455kg |
DIMENSIONS AND LOAD RATINGS | |||||||||||||||
| Fw Bore | D Outside Diameter | C/B Width | Bearing Designation | Load Ratings | Limiting Speed | ra* Housing Fillet | Used with Inner Ring Designation † | F Housing Shoulder Diameter | |||||||
| Basic Dynamic Cr
| Basic Static CO
| ||||||||||||||
| ISO | ISO | ||||||||||||||
| (nom.) | (nom.) | (nom.) | T | 281 | 76 | (max.) | ±1⁄64 | ±0.4 | |||||||
| inch | mm | inch | mm | inch | mm | lbf | lbf | lbf | rpm | inch | mm | inch | mm | ||
| 3.7500
| 95,250
| 4.7500
| 120,650
| 2.000
| 50,80
| HJ-607632
| 32 900
| 44 200
| 91 000
| 4 540
| 0.10
| 2,5
| IR-506032 IR-526032 | 4 3⁄8
| 111,1
|
| 4.0000
| 101,600
| 5.0000
| 127,000
| 2.000
| 50,80
| HJ-648032
| 34 300
| 46 000
| 98 000
| 4 230
| 0.10
| 2,5
| IR-526432 IR-546432 IR-566432 | 4 5⁄8
| 117,5
|
| 4.2500
| 107,950
| 5.2500
| 133,350
| 2.000
| 50,80
| HJ-688432
| 34 700
| 46 500
| 102 000
| 3 970
| 0.10
| 2,5
| IR-566832 IR-606832 | 4 7⁄8
| 123,8
|
| 4.5000 4.5000 | 114,300 114,300 | 6.0000 6.0000 | 152,400 152,400 | 2.250 2.500 | 57,15 63,50 | HJ-729636 HJ-729640 | 48 000 53 400 | 64 400 71 700 | 116 000 134 000 | 3 850 3 850 | 0.10 0.10 | 2,5 2,5 | IR-607236 IR-607240 | 5 7⁄16 5 7⁄16 | 138,1 138,1 |
| 5.0000 5.0000
5.0000 | 127,000 127,000
127,000 | 6.5000 6.5000
6.5000 | 165,100 165,100
165,100 | 2.000 2.250
2.500 | 50,80 57,15
63,50 | HJ-8010432 HJ-8010436
HJ-8010440 | 46 100 52 000
57 800 | 61 200 69 400
77 300 | 113 000 133 000
152 000 | 3 430 3 430
3 430 | 0.10 0.10
0.10 | 2,5 2,5
2,5 | — IR-648036 IR-688036 IR-648040 | 5 15⁄16 5 15⁄16
5 15⁄16 | 150,8 150,8
150,8 |
| 5.5000 5.5000 | 139,700 139,700 | 7.0000 7.0000 | 177,800 177,800 | 2.500 3.000 | 63,50 76,20 | HJ-8811240 HJ-8811248 | 58 600 69 500 | 78 600 93 300 | 160 000 199 000 | 3 120 3 120 | 0.10 0.10 | 2,5 2,5 | IR-728840 IR-728848 | 6 7⁄16 6 7⁄16 | 163,5 163,5 |
| 5.7500 | 146,050 | 7.2500 | 184,150 | 3.000 | 76,20 | HJ-9211648 | 70 600 | 94 800 | 207 000 | 2 960 | 0.12 | 3,0 | IR-769248 | 6 11⁄16 | 169,9 |
| 6.0000 6.0000 | 152,400 152,400 | 7.5000 7.5000 | 190,500 190,500 | 2.500 3.000 | 63,50 76,20 | HJ-9612040 HJ-9612048 | 61 900 74 000 | 83 000 99 300 | 178 000 224 000 | 2 830 2 830 | 0.12 0.12 | 3,0 3,0 | IR-809640 IR-809648 | 6 15⁄16 6 15⁄16 | 176,2 176,2 |
| 6.5000 6.5000 | 165,100 165,100 | 8.0000 8.0000 | 203,200 203,200 | 2.500 3.000 | 63,50 76,20 | HJ-10412840 HJ-10412848 | 64 100 76 300 | 86 000 102 000 | 191 000 237 000 | 2 600 2 600 | 0.12 0.12 | 3,0 3,0 | IR-8810440 IR-8810448 | 7 7⁄16 7 7⁄16 | 188,9 188,9 |
| 7.2500 | 184,150 | 9.1250 | 231,775 | 3.000 | 76,20 | HJ-11614648 | 88 600 | 118 300 | 253 000 | 2 340 | 0.12 | 3,0 | IR-9611648 | 8 1⁄2 | 215,9 |
| 7.7500 | 196,850 | 9.6250 | 244,475 | 3.000 | 76,20 | HJ-12415448 | 92 000 | 123 000 | 271 000 | 2 180 | 0.12 | 3,0 | IR-10412448 | 9 | 228,6 |
| 8.2500 | 209,550 | 10.1250 | 257,175 | 3.000 | 76,20 | HJ-13216248 | 95 400 | 127 000 | 290 000 | 2 040 | 0.12 | 3,0 | IR-11213248 | 9 1⁄2 | 241,3 |
| 8.7500 | 222,250 | 10.6250 | 269,875 | 3.000 | 76,20 | HJ-14017048 | 98 600 | 130 000 | 308 000 | 1 920 | 0.16 | 4,0 | IR-12014048 | 10 | 254,0 |
| 9.2500 | 234,950 | 11.1250 | 282,575 | 3.000 | 76,20 | HJ-14817848 | 101 000 | 136 000 | 326 000 | 1 810 | 0.16 | 4,0 | IR-12814848 | 10 1⁄2 | 266,7 |
BEARING MOUNTING DIMENSIONS | ||||||||||||||||
| Mounting Dimensions, Clearance Fit | Bearing Designation | Mounting Dimensions, Tight Transition Fit | ||||||||||||||
| Inch Mounting | Metric Mounting(mm) | Inch Mounting | Metric Mounting(mm) | |||||||||||||
| S Shaft Raceway Diameter | H Housing Bore Diameter | S Shaft Raceway Diameter | H Housing Bore Diameter | S Shaft Raceway Diameter | H Housing Bore Diameter | S Shaft Raceway Diameter | H Housing Bore Diameter | |||||||||
| max. | min. | min. | max. | max. | min. | min. | max. | max. | min. | min. | max. | max. | min. | min. | max. | |
| 3.7500 | 3.7491 | 4.7500 | 4.7516 | 95,250 | 95,227 | 120,650 | 120,691 | HJ-607632 | 3.7487 | 3.7477 | 4.7478 | 4.7494 | 95,214 | 95,191 | 120,594 | 120,635 |
| 4.0000 | 3.9991 | 5.0000 | 5.0016 | 101,600 | 101,577 | 127,000 | 127,041 | HJ-648032 | 3.9986 | 3.9977 | 4.9978 | 4.9994 | 101,564 | 101,541 | 126,944 | 126,985 |
| 4.2500 | 4.2491 | 5.2500 | 5.2516 | 107,950 | 107,927 | 133,350 | 133,391 | HJ-688432 | 4.2486 | 4.2477 | 5.2478 | 5.2494 | 107,914 | 107,891 | 133,294 | 133,335 |
| 4.5000 4.5000 | 4.4991 4.4991 | 6.0000 6.0000 | 6.0016 6.0016 | 114,300 114,300 | 114,277 114,277 | 152,400 152,400 | 152,441 52,441 | HJ-729636 HJ-729640 | 4.4986 4.4986 | 4.4977 4.4977 | 5.9978 5.9978 | 5.9994 5.9994 | 114,264 114,264 | 114,241 114,241 | 152,344 152,344 | 152,385 152,385 |
| 5.0000 5.0000 5.0000 | 4.9990 4.9990 4.9990 | 6.5000 6.5000 6.5000 | 6.5016 6.5016 6.5016 | 127,000 127,000 127,000 | 126,975 126,975 126,975 | 165,100 165,100 165,100 | 165,141 165,141 165,141 | HJ-8010432 HJ-8010436 HJ-8010440 | 4.9984 4.9984 4.9984 | 4.9974 4.9974 4.9974 | 6.4978 6.4978 6.4978 | 6.4994 6.4994 6.4994 | 126,959 126,959 126,959 | 126,934 126,934 126,934 | 165,044 165,044 165,044 | 165,085 165,085 165,085 |
| 5.5000 5.5000 | 5.4990 5.4990 | 7.0000 7.0000 | 7.0016 7.0016 | 139,700 139,700 | 139,675 139,675 | 177,800 177,800 | 177,841 77,841 | HJ-8811240 HJ-8811248 | 5.4984 5.4984 | 5.4974 5.4974 | 6.9978 6.9978 | 6.9994 6.9994 | 139,659 139,659 | 139,634 139,634 | 177,744 177,744 | 177,785 177,785 |
| 5.7500 | 5.7490 | 7.2500 | 7.2518 | 146,050 | 146,025 | 184,150 | 184,196 | HJ-9211648 | 5.7484 | 5.7474 | 7.2476 | 7.2494 | 146,009 | 145,984 | 184,089 | 184,135 |
| 6.0000 6.0000 | 5.9990 5.9990 | 7.5000 7.5000 | 7.5018 7.5018 | 152,400 152,400 | 152,375 152,375 | 190,500 190,500 | 190,546 190,546 | HJ-9612040 HJ-9612048 | 5.9984 5.9984 | 5.9974 5.9974 | 7.4976 7.4976 | 7.4994 7.4994 | 152,359 152,359 | 152,334 152,334 | 190,439 190,439 | 190,485 190,485 |
| 6.5000 6.5000 | 6.4990 6.4990 | 8.0000 8.0000 | 8.0018 8.0018 | 165,100 165,100 | 165,075 165,075 | 203,200 203,200 | 203,246 203,246 | HJ-10412840 HJ-10412848 | 6.4984 6.4984 | 6.4974 6.4974 | 7.9976 7.9976 | 7.9994 7.9994 | 165,059 165,059 | 165,034 165,034 | 203,139 203,139 | 203,185 203,185 |
| 7.2500 | 7.2488 | 9.1250 | 9.1268 | 184,150 | 184,120 | 231,775 | 231,821 | HJ-11614648 | 7.2480 | 7.2468 | 9.1226 | 9.1244 | 184,099 | 184,069 | 231,714 | 231,760 |
| 7.7500 | 7.7488 | 9.6250 | 9.6268 | 196,850 | 196,820 | 244,475 | 244,521 | HJ-12415448 | 7.7480 | 7.7468 | 9.6226 | 9.6244 | 196,799 | 196,769 | 244,414 | 244,460 |
| 8.2500 | 8.2488 | 10.1250 | 10.1270 | 209,550 | 209,520 | 257,175 | 257,226 | HJ-13216248 | 8.2480 | 8.2468 | 10.1224 | 10.1244 | 209,499 | 209,469 | 257,109 | 257,160 |
| 8.7500 | 8.7488 | 10.6250 | 10.6270 | 222,250 | 222,220 | 269,875 | 269,926 | HJ-14017048 | 8.7480 | 8.7468 | 10.6224 | 10.6244 | 222,199 | 222,169 | 269,809 | 269,860 |
| 9.2500 | 9.2488 | 11.1250 | 11.1270 | 234,950 | 234,920 | 282,575 | 282,626 | HJ-14817848 | 9.2480 | 9.2468 | 11.1224 | 11.1244 | 234,899 | 234,869 | 282,509 | 282,560 |
TIMKEN-Torrington HJ-607632 Needle Roller Bearing
The TIMKEN-Torrington HJ-607632 is a needle roller bearing known for its compact design and high load-carrying capacity. Part of the renowned TIMKEN brand, this bearing is specifically designed to handle heavy radial loads in applications where space and weight constraints are critical. It is widely used in various industrial applications, including automotive transmissions, gearboxes, and other machinery requiring reliable, high-performance bearings.
Design and Construction
The HJ-607632 bearing features a full complement of needle rollers, providing maximum load capacity and stability in a compact size. The bearing measures 3.75 inches (95.25 mm) in outer diameter, 4 inches (101.6 mm) in length, and 0.375 inches (9.525 mm) in wall thickness. This design allows the bearing to handle high radial loads while maintaining a low profile, making it ideal for applications with limited space.
The bearing’s outer ring is made from high-quality, case-hardened steel, providing excellent wear resistance and durability. The needle rollers are precisely arranged within the bearing to ensure even load distribution and minimize friction. The absence of an inner ring allows the bearing to be directly mounted on the shaft, saving space and reducing overall assembly weight.
Performance Features
The TIMKEN-Torrington HJ-607632 bearing excels in high-load, high-speed applications. Its full complement of needle rollers provides a large contact area, allowing it to support heavy radial loads with minimal deformation. This bearing design also minimizes friction, reducing heat generation and extending the bearing’s service life.
Applications
This bearing is commonly used in automotive transmissions, gearboxes, and industrial machinery, where space efficiency and high load capacity are crucial. Its robust design and high-performance characteristics make it suitable for demanding environments, ensuring reliable operation even under heavy-duty conditions.
Conclusion
The TIMKEN-Torrington HJ-607632 needle roller bearing is a compact, high-capacity solution designed for applications where space is limited but load requirements are high. Its durable construction and efficient design make it a reliable choice for a wide range of industrial and automotive applications.
